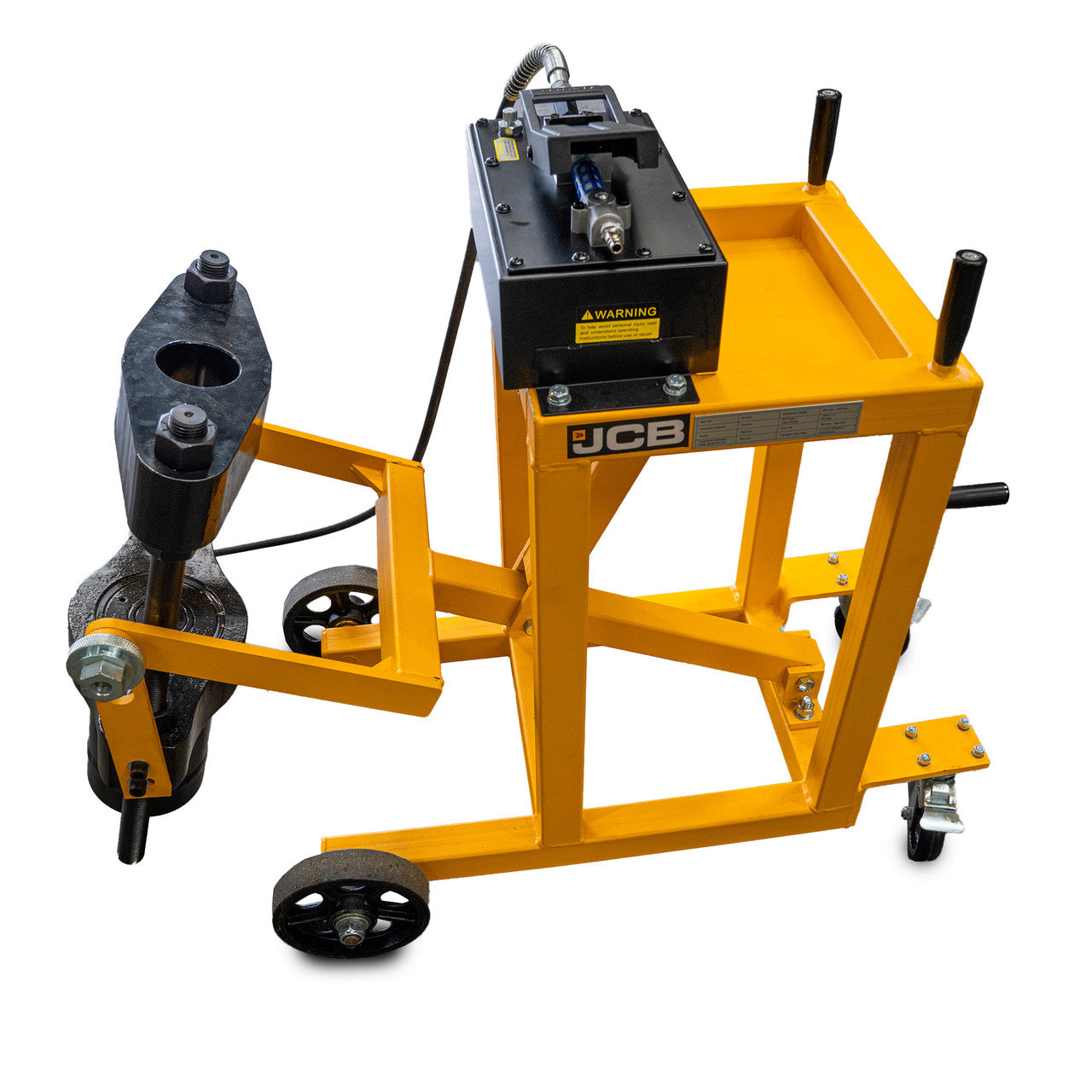

JCB 75 Tonne Truck King-Pin Press With Air Pump and Trolley | JCB-B1339
JCB 75 Tonne Truck King-Pin Press With Air Pump and Trolley | JCB-B1339
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Business Finance Options:
Product Details
Description
The JCB-B1339 is a robust and heavy-duty 75 tonne hydraulic truck king-pin press designed for the efficient removal and installation of stubborn or seized truck king-pins, while keeping the axle in place.
Suitable to be used in commercial automotive garages and workshops, the JCB-B1339 is equipped with 75 tonnes of compression force and operates with a piston stroke rate of 140mm to allow for the rapid removal and installation of king-pins with minimal effort to the user.
With its sturdy trolley mounted on 4-wheels, including 2-swivel wheels, this JCB king-pin press can be quickly moved and manoeuvred around any garage or workshop.
Boasting a maximum ground clearance of 430mm and lift adjustment capacity of up to 580mm, this JCB king-pin press comes complete with 4 sleeves and 5 punches in various diameters and lengths to cater for a wide-range of heavy-duty and large commercial vehicles.
Built for the trade professional, the JCB-B1339 can be operated by a foot pump, which applies up to 63 MPa of pumping pressure for quick and efficient lifting.
For added convenience, the JCB-B1339’s press block can rotate a full 360° and be adjusted to fit in even the tightest of wheel wells.
Key Features
- JCB-B1339 75 Tonne Truck King-Pin Press with Trolley and Foot Pump

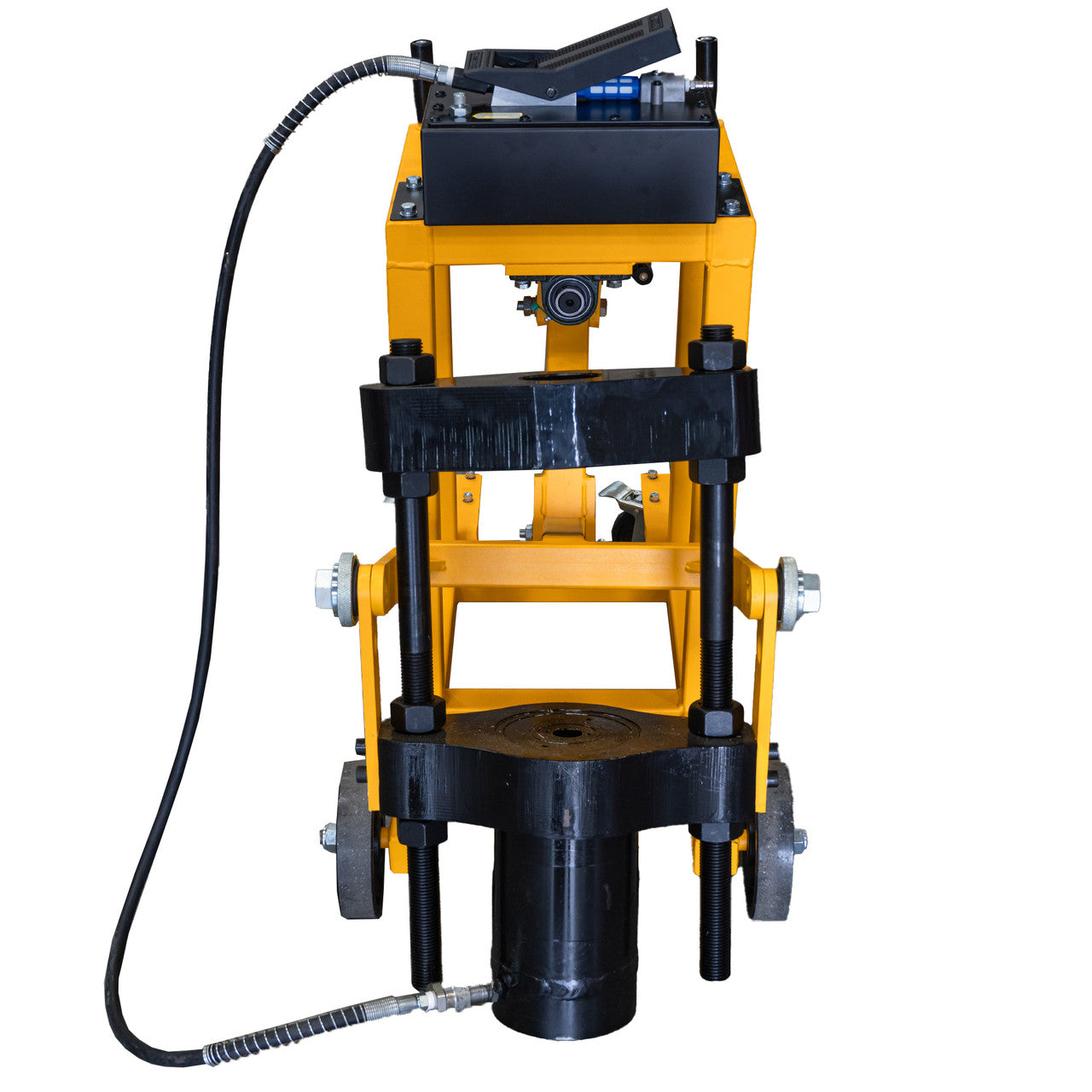

- Robust and heavy-duty JCB king-pin press designed for the efficient removal and installation of stubborn or seized king-pins

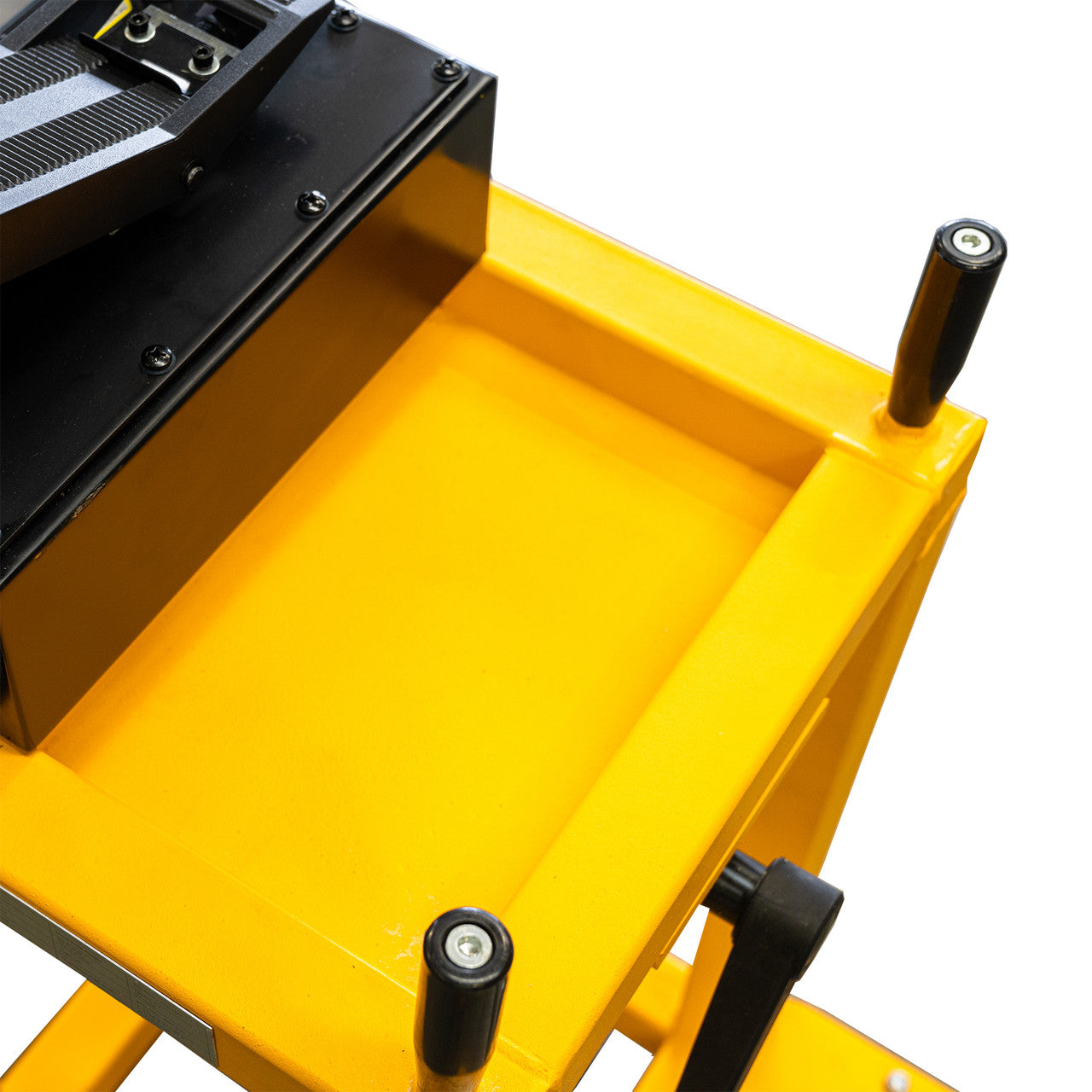

- King-pin press block can be rotated 360° and adjusted to fit in even the tightest of wheel wells
- 75 Tonnes of Maximum Compression Force
- 140mm Piston Stroke Rate
- Maximum Ground Clearance: 430mm
- Lift Adjustment Range: 350 - 580mm
- Comes included with 4 sleeves and 5 punches in various diameters and lengths
- Quick operation and lifting with foot pump
- Maximum Pump Capacity: 1800cm3
- Backed by a comprehensive 3-year warranty* (1 year Commercial)*
3 Year Warranty (Terms Apply)
View All JCB Automotive Tools
Specifications
| EAN | 5059608428339 |
| Gross Weight (kg) | 207.00 |
| Ground Clearance (mm) | 320 - 430 |
| Hydraulic Cylinder (T) | 75 |
| In the Box | Includes 9 bushings and adapter |
| Lifting Adjustment (mm) | 350 - 580 |
| Model | JCB-B1339 |
| Net Weight (kg) | 187.00 |
| Package Dimensions (H x W x L) (mm) | 940 x 620 x 1130 |
| Piston Stroke (mm) | - |
| Product Dimensions (H x W x L) (mm) | - |
| Pump Capacity (cm3) | 1800 |
| Pump Pressure (MPa) | 63 |
| Warranty (Years) | 3 |
