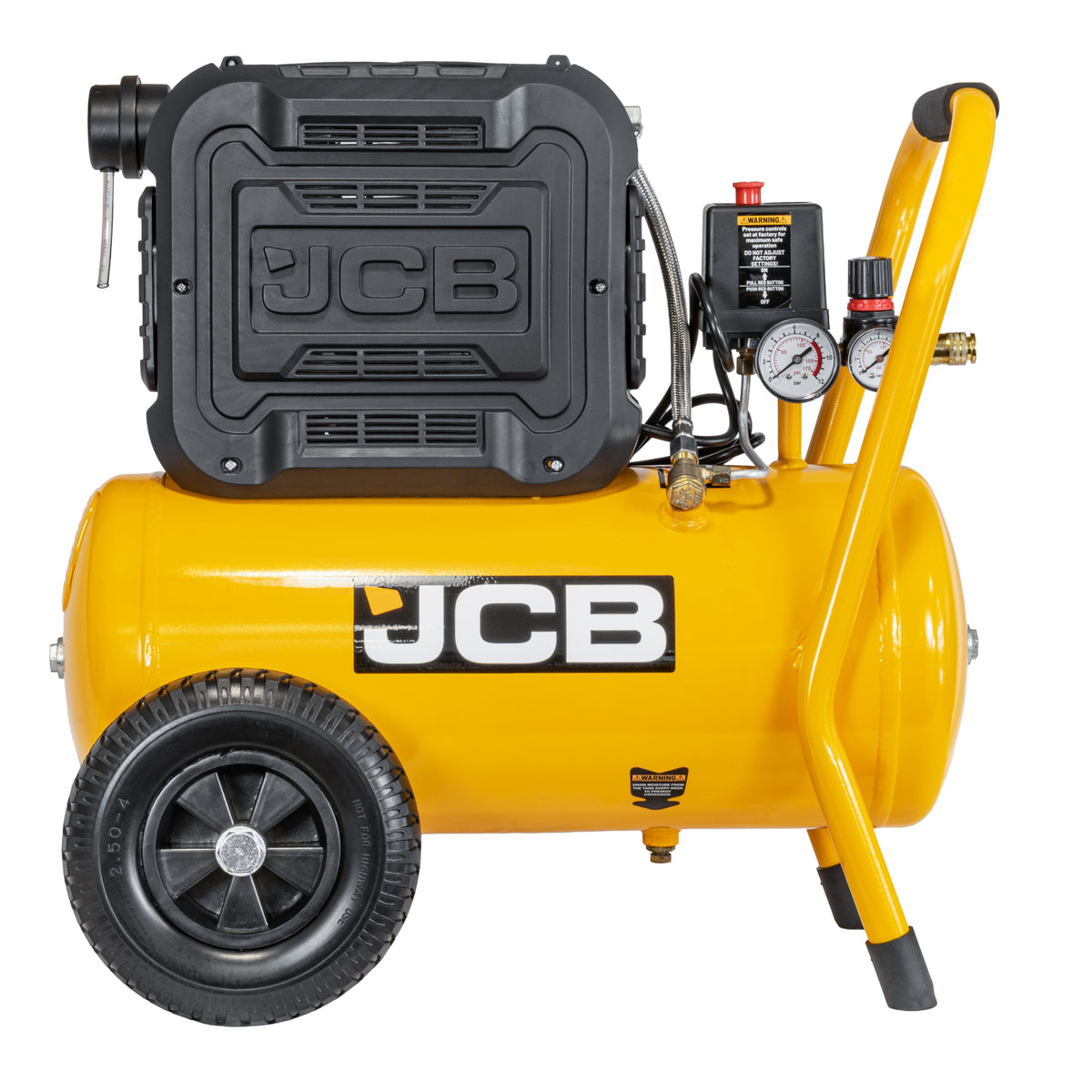

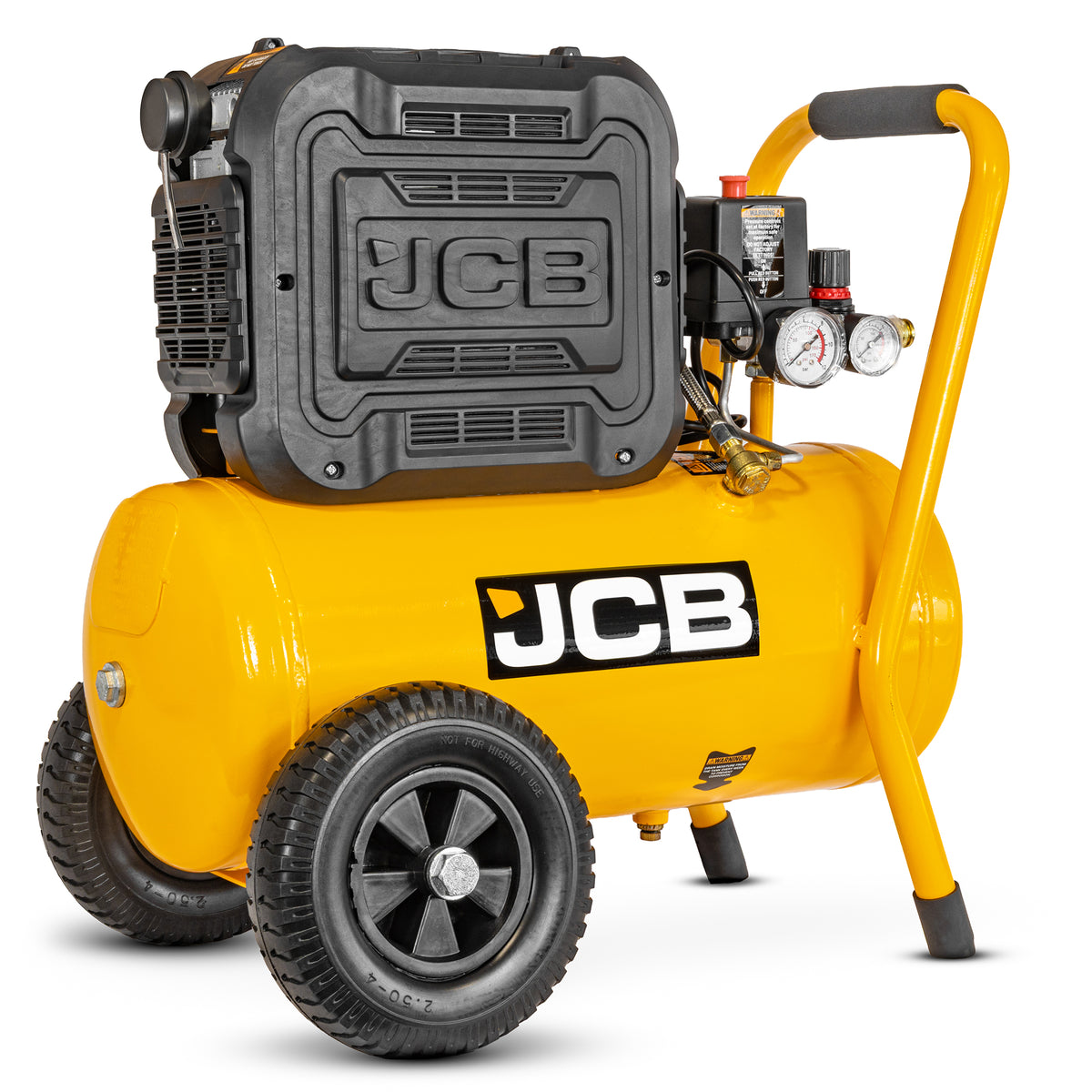

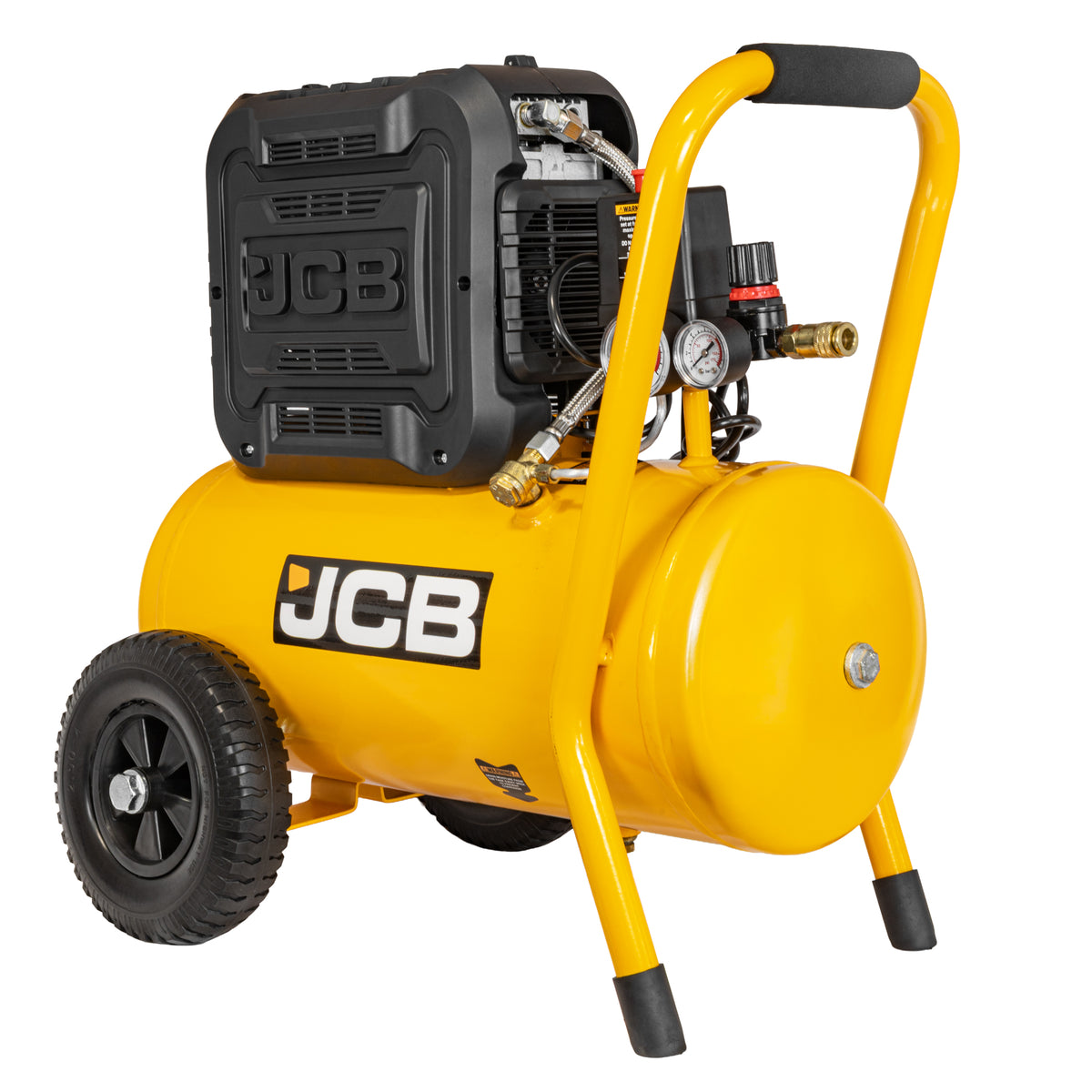

JCB-OFAC-24H Silent Pro 24L oil-free air compressor in a workshop
24L SILENT PRO OIL-FREE AIR COMPRESSOR

24L OIL-FREE AIR POWER

Controlled compressed air for light-trade, garage and DIY tasks

JCB-OFAC-24H
24LRECEIVER
131L/MINDISPLACEMENT
8 BARMAX PRESSURE
26KGNET WEIGHT
FEATURES THAT WORK HARDER

CONTROLLED AIR. PRACTICAL OWNERSHIP

Confirmed product features designed around workshop use, straightforward control and routine maintenance.

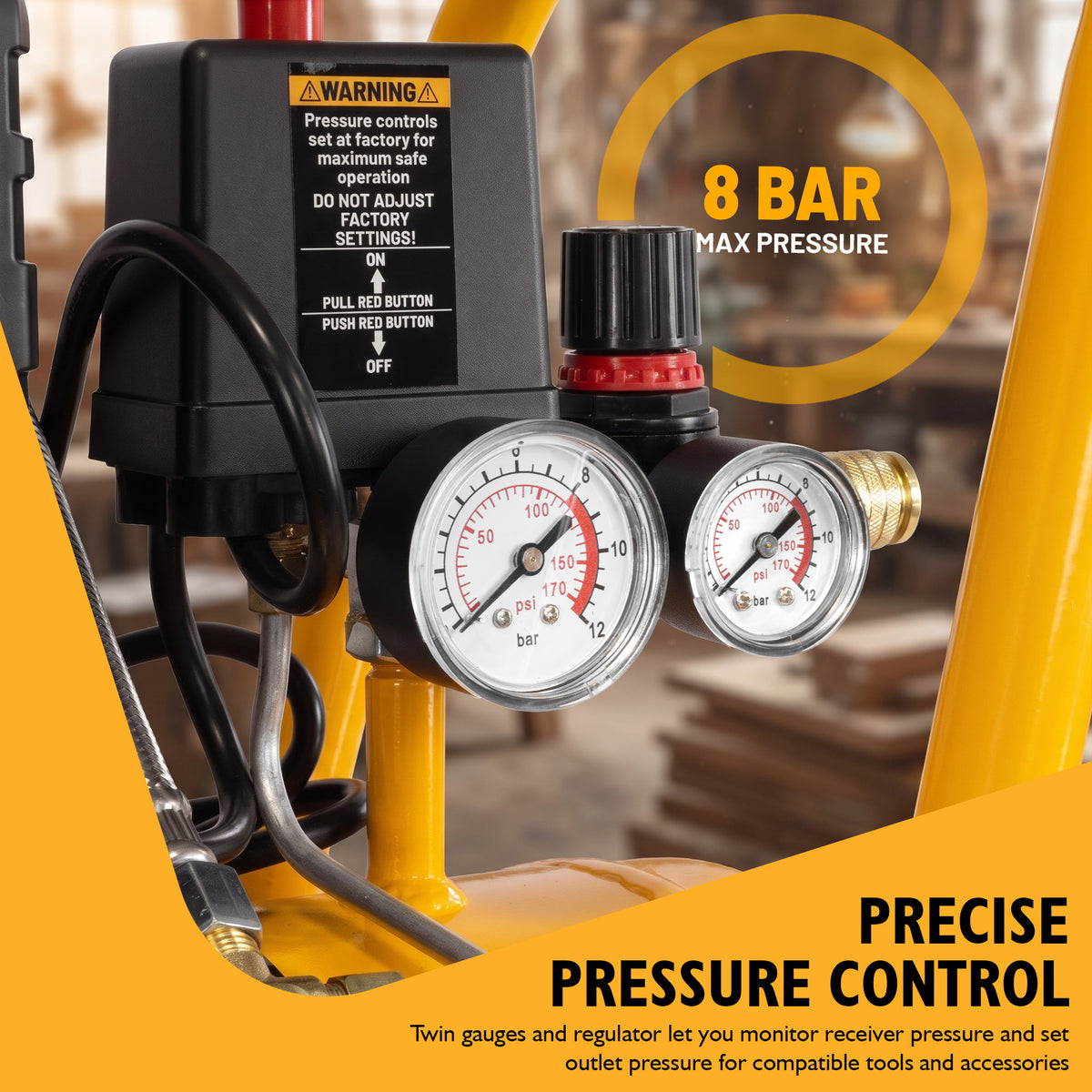

JCB-OFAC-24H twin gauges, regulator and Euro air coupling

CONTROL AT A GLANCE

Twin gauges, a regulator and Euro coupling help set the outlet for compatible tools and accessories.

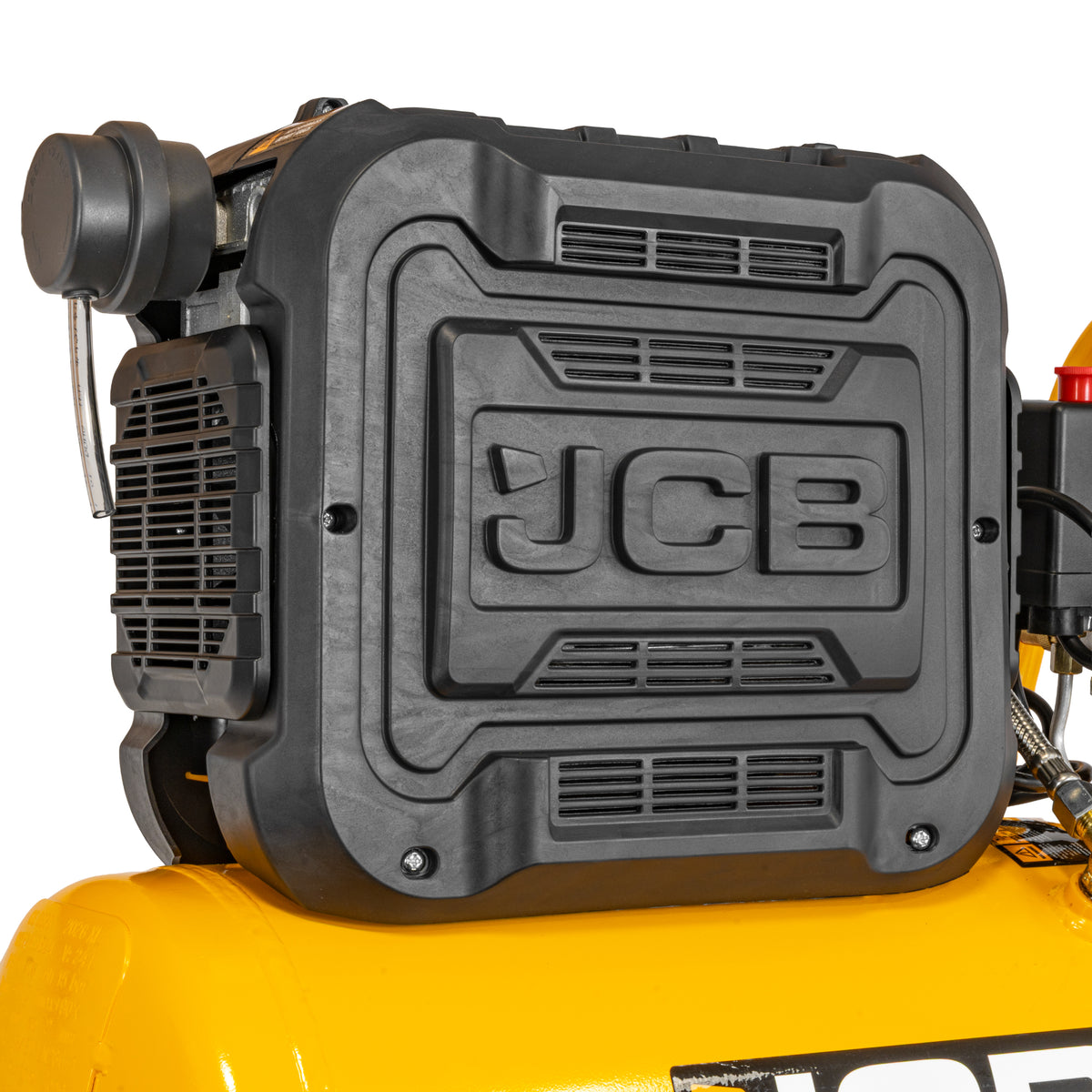

JCB-OFAC-24H oil-free compressor pump detail

LOWER ROUTINE MAINTENANCE

The oil-free pump removes routine pump-oil changes and avoids pump-oil carryover.

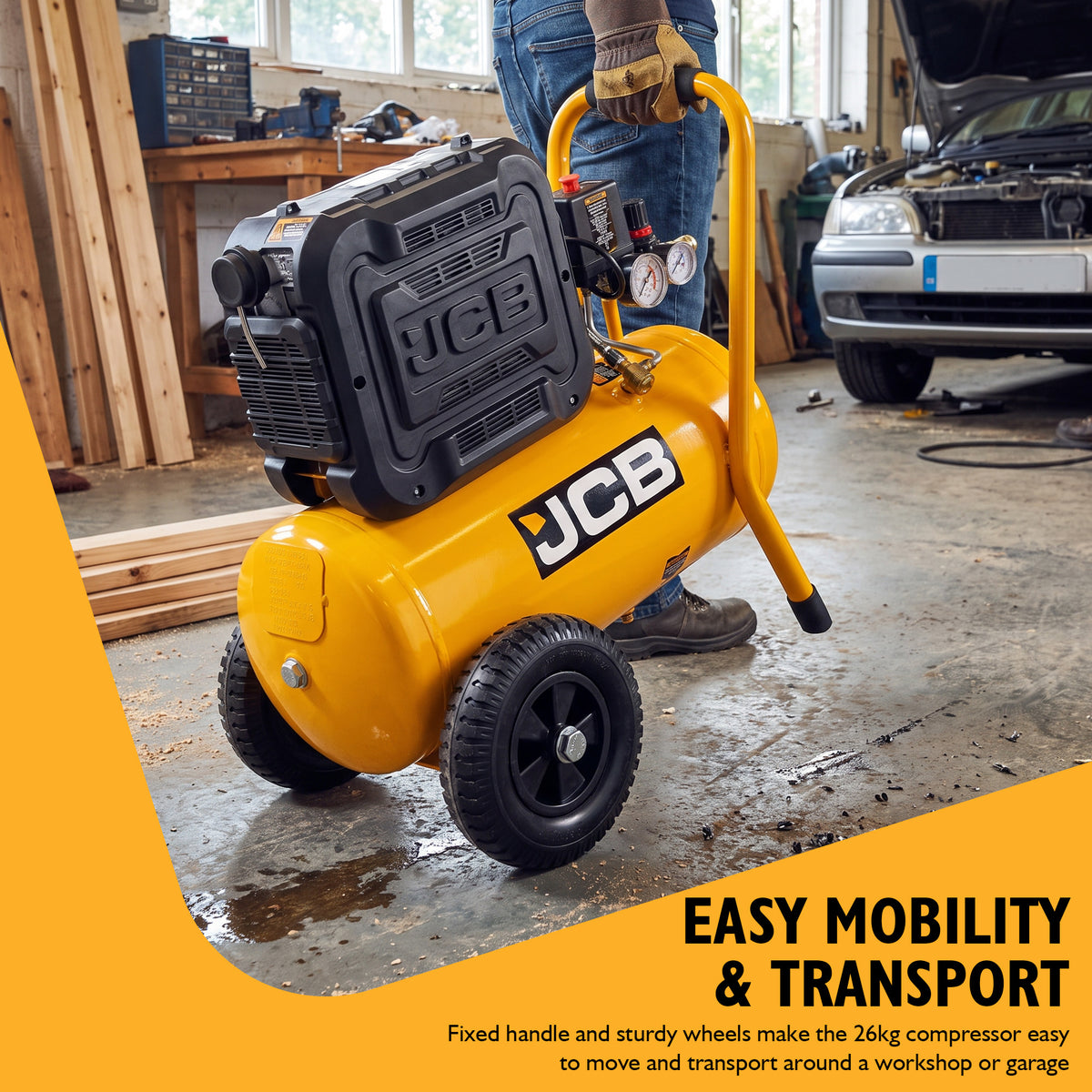

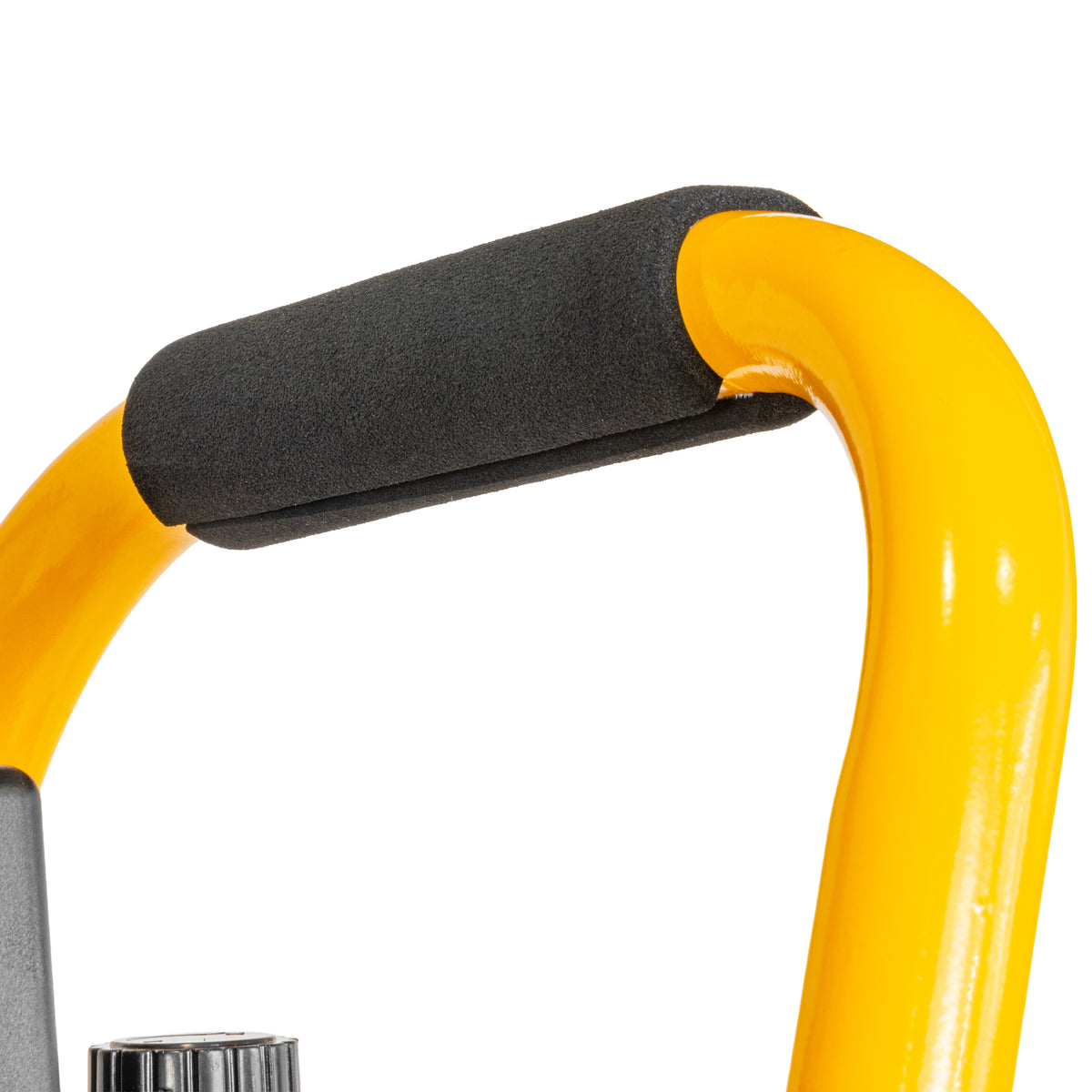

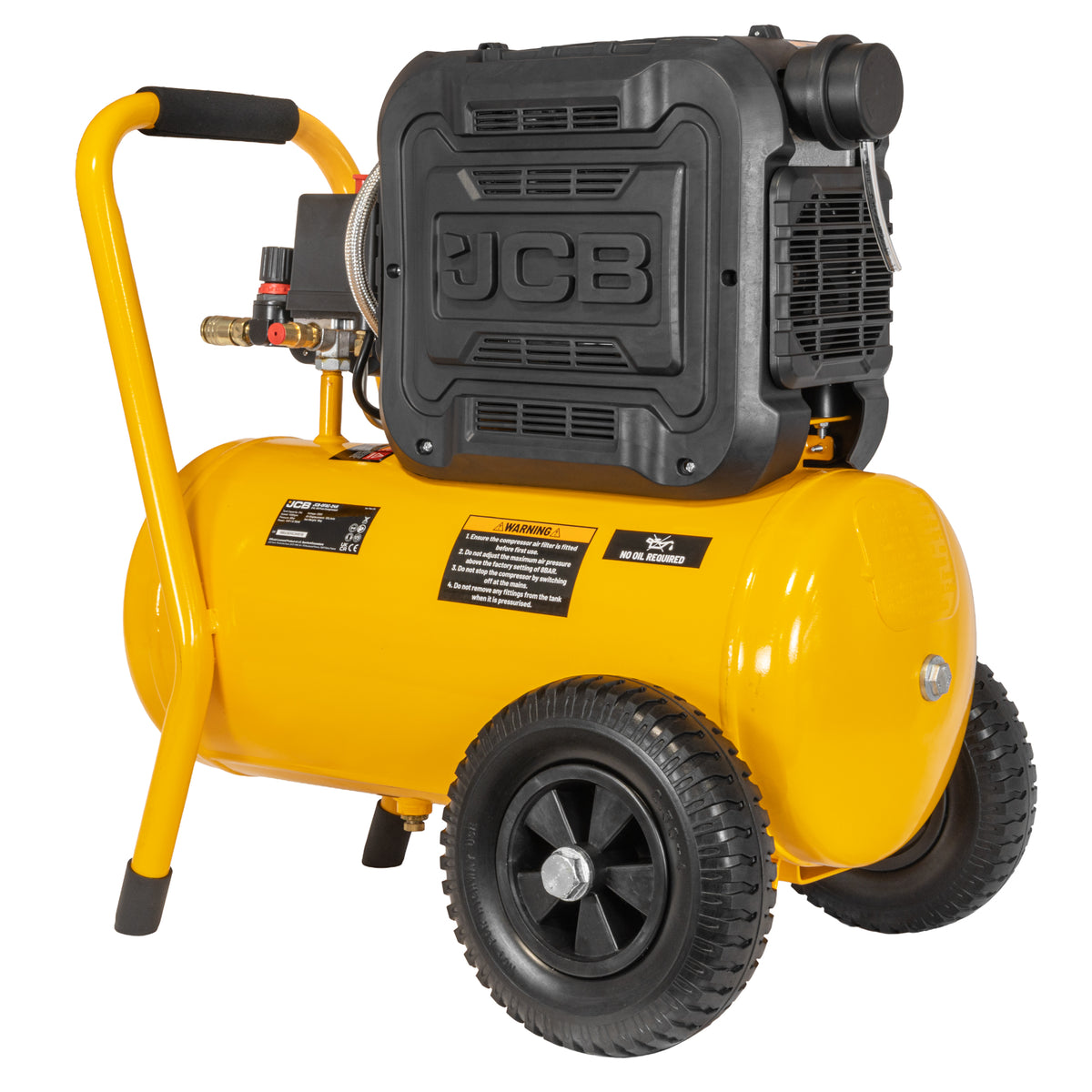

JCB-OFAC-24H handle and wheels for workshop mobility

MOVE BETWEEN TASKS

A fixed handle and wheels support movement around workshops and garages.

65DB(A)INTERTEK-TESTED SOUND PRESSURE

Silent Pro operation supports garages and workshops where operating noise matters.

2 YEARSDOMESTIC WARRANTY

One year commercial cover and 90 days for hire, subject to current terms.

PUT AIR TO WORK

BUILT AROUND REAL TASKS

Choose compatible tools and accessories only after checking working pressure, airflow and duty-cycle requirements.

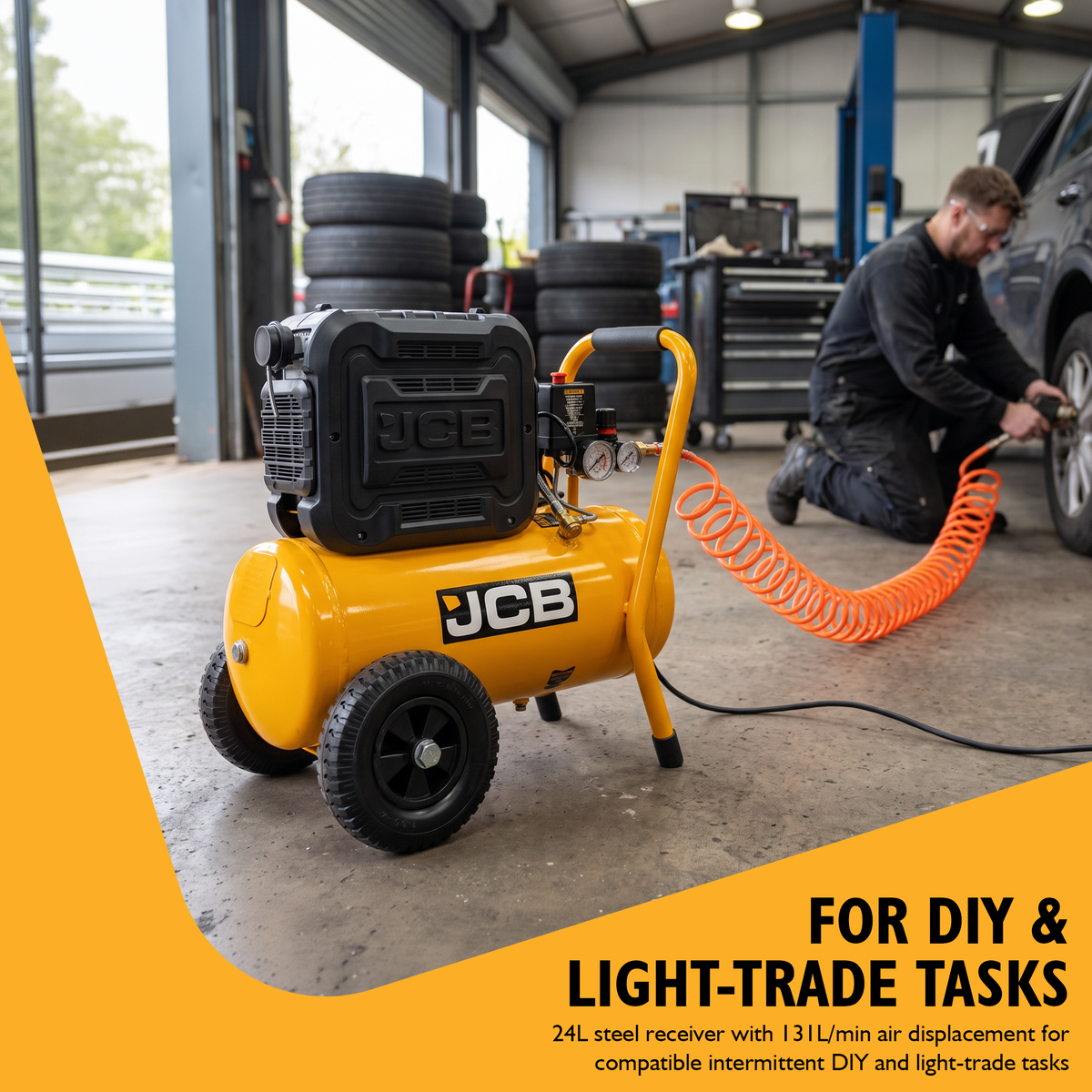

JCB-OFAC-24H air compressor used for inflation

INFLATION

Useful stored air for compatible tyre and inflatable equipment.

JCB-OFAC-24H air compressor used for compatible light stapling

LIGHT STAPLING

Support compatible short-duration stapling tasks after checking tool demand.

JCB-OFAC-24H air compressor used for airbrushing

AIRBRUSHING

Oil-free air for compatible airbrush work in a suitable environment.

JCB-OFAC-24H air compressor used for blow cleaning

BLOW CLEANING

Clear loose workshop debris with a compatible blow gun and suitable PPE.

JCB-OFAC-24H air compressor and supplied assembly items
PRODUCT SET-UP

READY TO ASSEMBLE AND USE

  • JCB-OFAC-24H air compressor
  • Wheels and axles
  • Air filter
  • Rubber foot and fixings
  • Instruction manual
JCB SILENT PRO RANGE

CHOOSE THE RIGHT AIR COMPRESSOR

Compare receiver size, air displacement and working format to the demands of the task.

Models shown are sold separately. Always match the connected tool to the compressor’s pressure, air-delivery and duty-cycle specifications.

Product Details

Description

Part of the JCB Silent Pro range, the JCB-OFAC-24H is a 24L oil-free air compressor for light trade, workshop and DIY use. It is suitable for tasks including inflation, air brushing, blow cleaning and light stapling, subject to the connected tool's air requirements. Its 750W, 1HP direct-drive pump provides 131L/min air displacement and reaches 8 bar/116psi.

Controlled Air Output

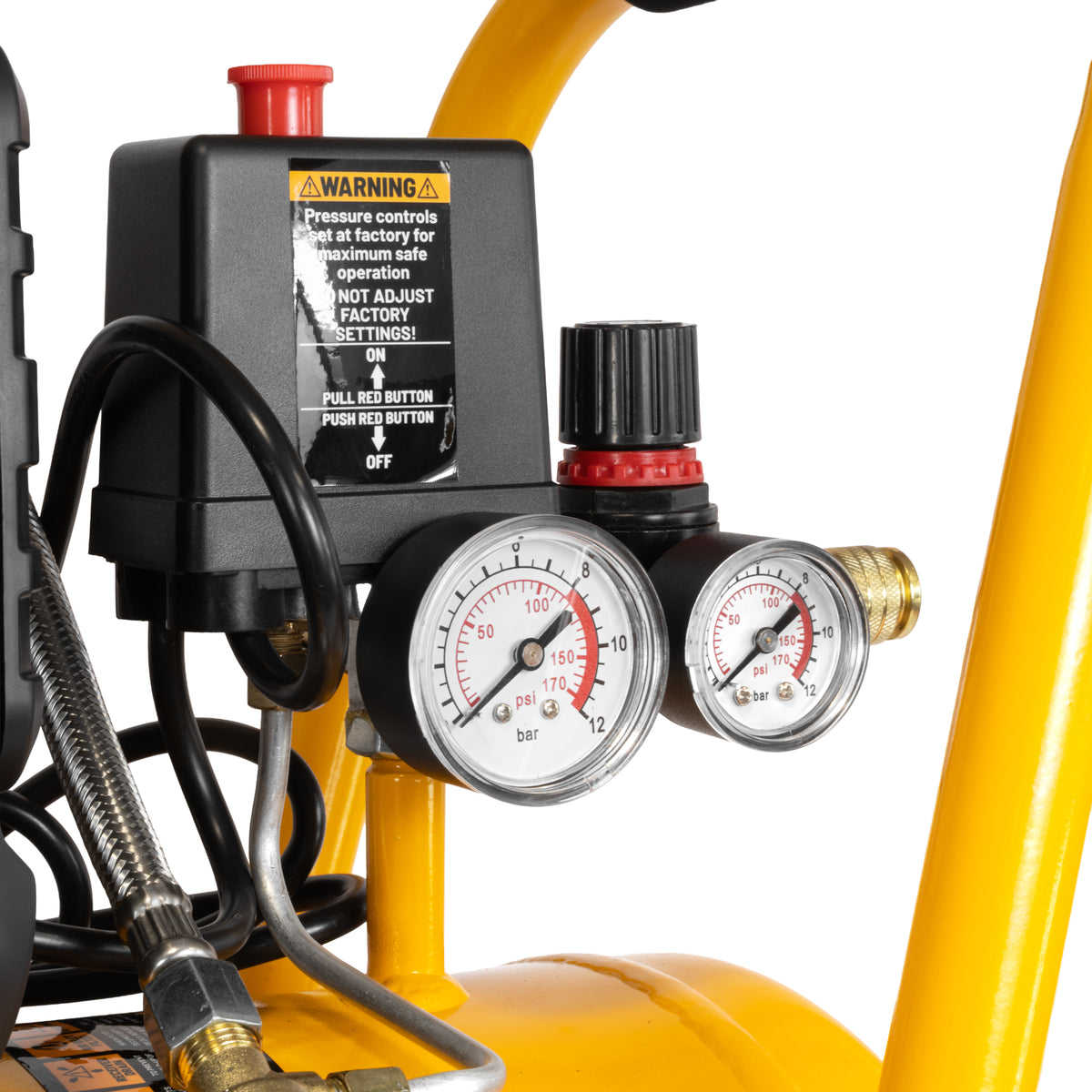

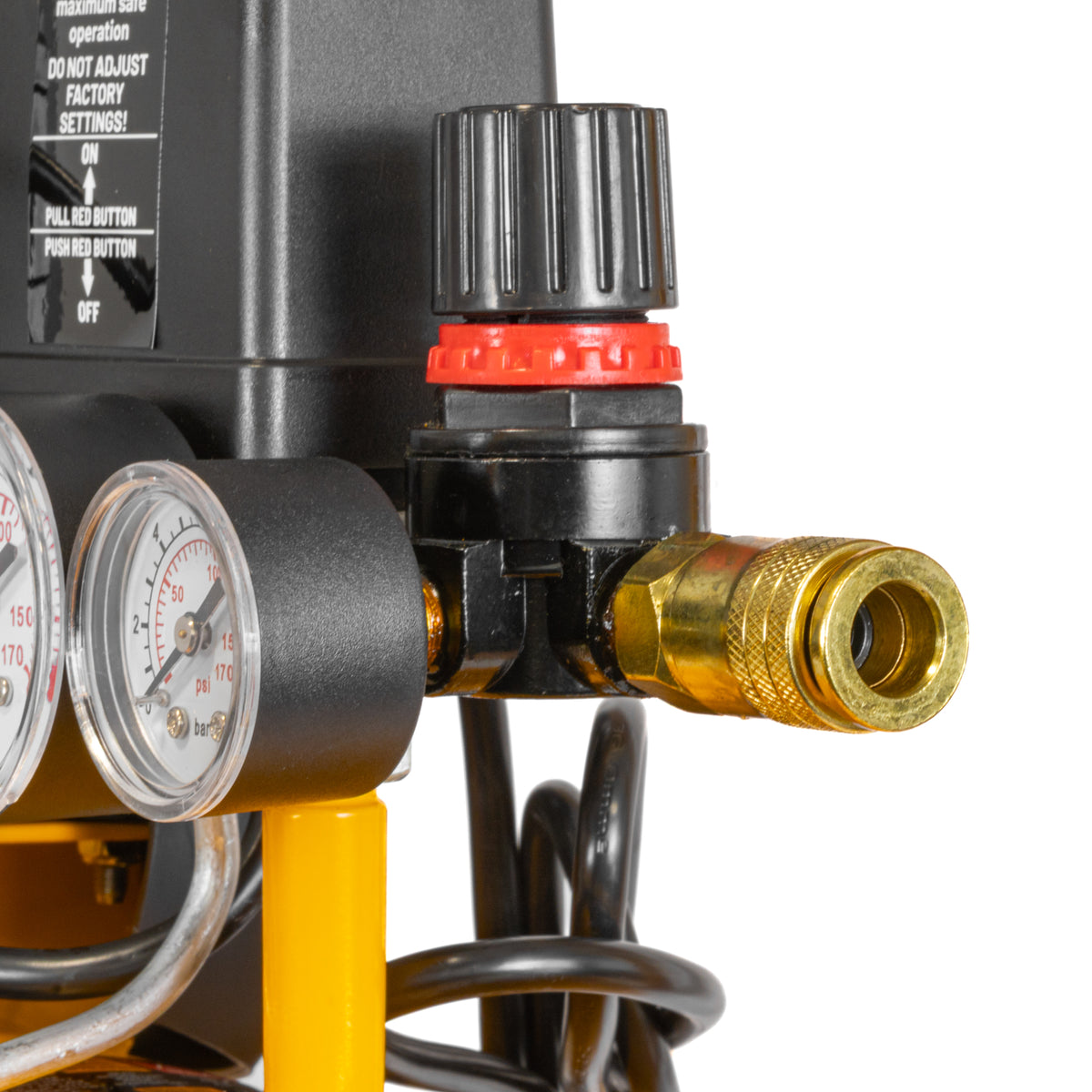

Twin pressure gauges, a pressure regulator and a Euro coupling with 1/4in BSP connection make it straightforward to monitor receiver pressure and connect compatible accessories and air tools.

Silent Pro Workshop Air

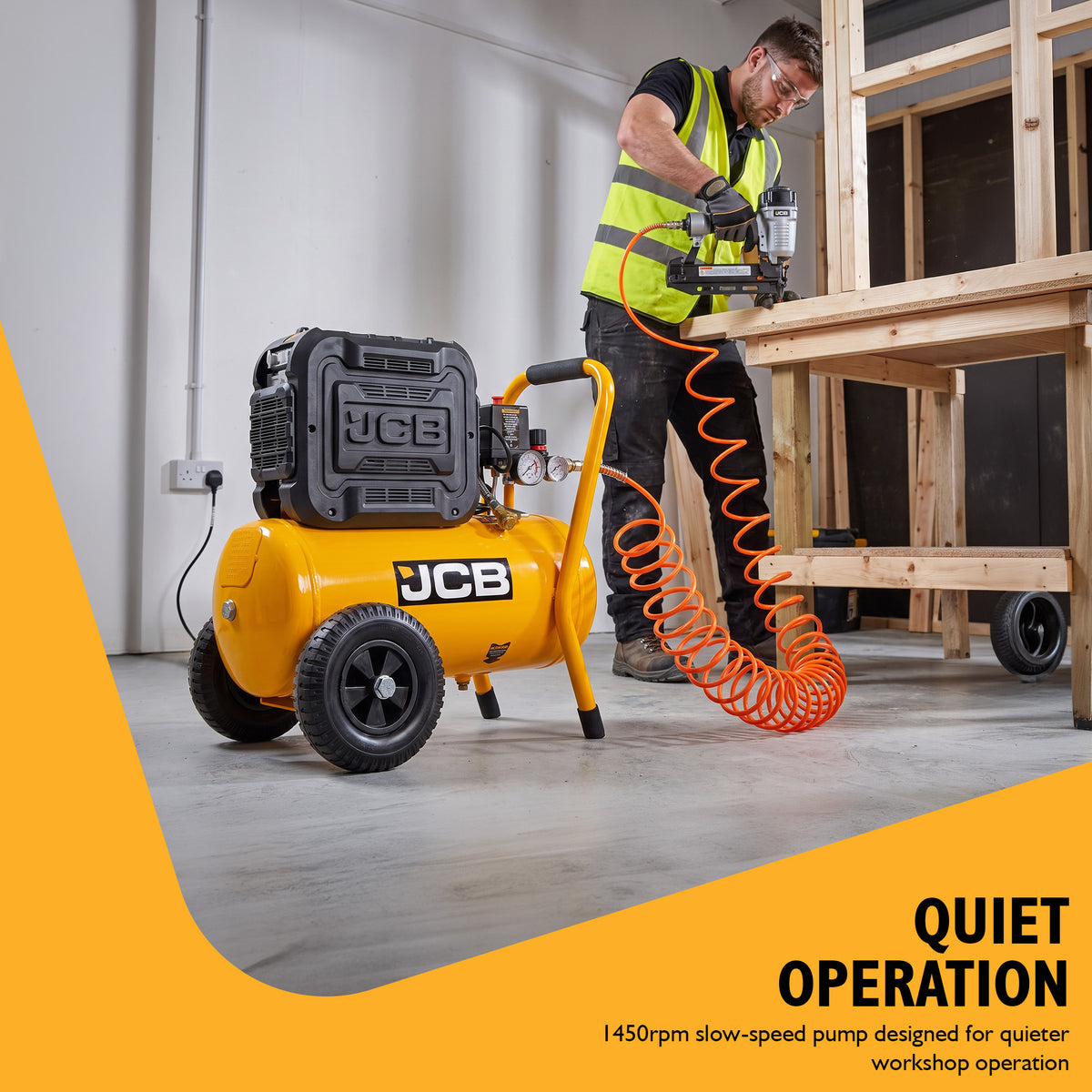

The JCB Silent Pro design uses a 1450rpm slow-speed pump for quieter workshop operation. Intertek testing records a 65dB(A) sound pressure level, making normal conversation practical in typical indoor use. The separate 78dB(A) figure is the sound power level under the applicable test conditions; actual perceived noise varies with distance and surroundings.

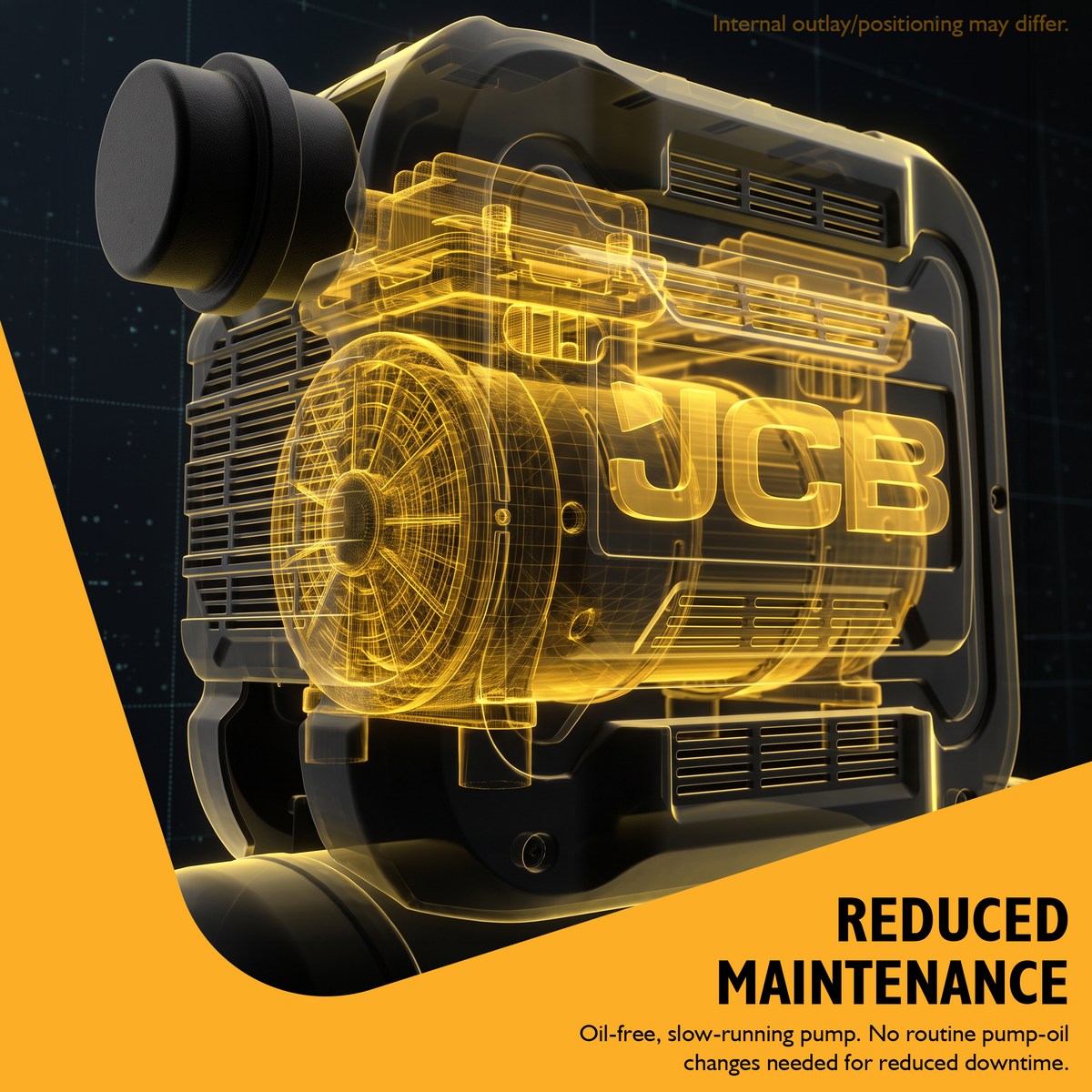

Oil-Free, Direct-Drive Design

The oil-free pump does not need routine pump-oil changes, reducing pump maintenance and downtime while avoiding pump-oil carryover into the airline for suitable spraying and air-brushing tasks. Its direct-drive design also helps keep the compressor compact for easier storage and transport between jobs.

24L Wheeled Steel Receiver

The 24L steel receiver provides ample stored-air capacity for intermittent DIY and light-trade tasks such as inflation, blow cleaning, air brushing and light stapling. For higher air demand or longer tool run times, consider the JCB-OFAC-50H, subject to the connected tool's air requirements. The fixed handle and wheels make the 26kg compressor easier to move and transport around a workshop or garage.

Safe Use

  • For indoor use only. Keep the compressor dry and use an RCD-protected supply where required.
  • Wear suitable eye and hearing protection. Never direct compressed air at people or clean clothing while it is being worn.
  • Check every connected tool's working pressure, airflow and duty-cycle requirements before use.
  • Do not use the compressor to supply breathing air.
  • Drain condensate and inspect the receiver as directed in the supplied manual. Do not modify or repair the receiver.

Warranty & Support

UK-based service and parts support is available. 2 years for residential/non-commercial use, 1 year for commercial use and 90 days for hire, subject to current JCB Tools UK warranty terms.

Specifications

Product typeSilent Pro oil-free air compressor
Tank capacity24L
Pump typeOil-free, direct drive
Rated power750W / 1HP
Motor speed1450rpm
Voltage230V
Maximum pressure8 bar / 116psi
Free air delivery (FAD)50L/min / 1.77CFM
Air displacement131L/min / 4.63CFM
Air outletEuro coupling with 1/4in BSP connection
Sound pressure level65dB(A), K=3dB
Sound power level78dB(A), K=1.99dB
Duty typeS1 continuous duty
Power cable1.5m
Tank materialSteel
MobilityHandle and wheels
Net weight26kg
Gross weight29kg
Assembled dimensions (H x W x L)620 x 390 x 600mm
Packaged dimensions (H x W x L)680 x 360 x 660mm

Support

JCB-OFAC-24H - Spec Sheet PDF Document
Download
