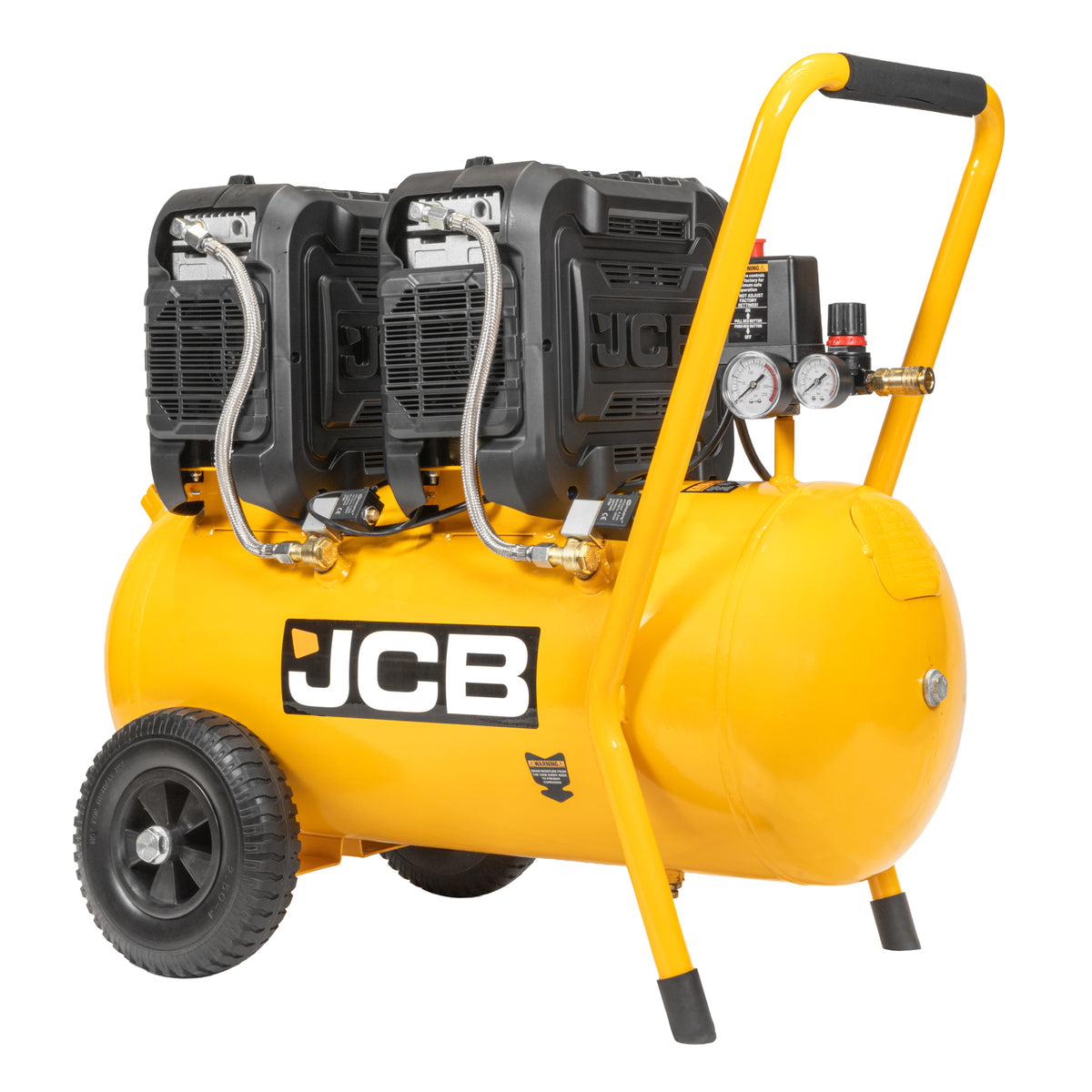

JCB-OFAC-50H Silent Pro 50L oil-free air compressor in a professional workshop
50L SILENT PRO OIL-FREE AIR COMPRESSOR

WORKSHOP AIR POWER

A 50L receiver and 300L/min displacement for compatible intermittent workshop tasks

JCB-OFAC-50H
50LRECEIVER
300L/MINDISPLACEMENT
8 BARMAX PRESSURE
44.5KGNET WEIGHT
FEATURES THAT WORK HARDER

CONTROLLED AIR. PRACTICAL OWNERSHIP

Confirmed product features designed around workshop use, straightforward control and routine maintenance.

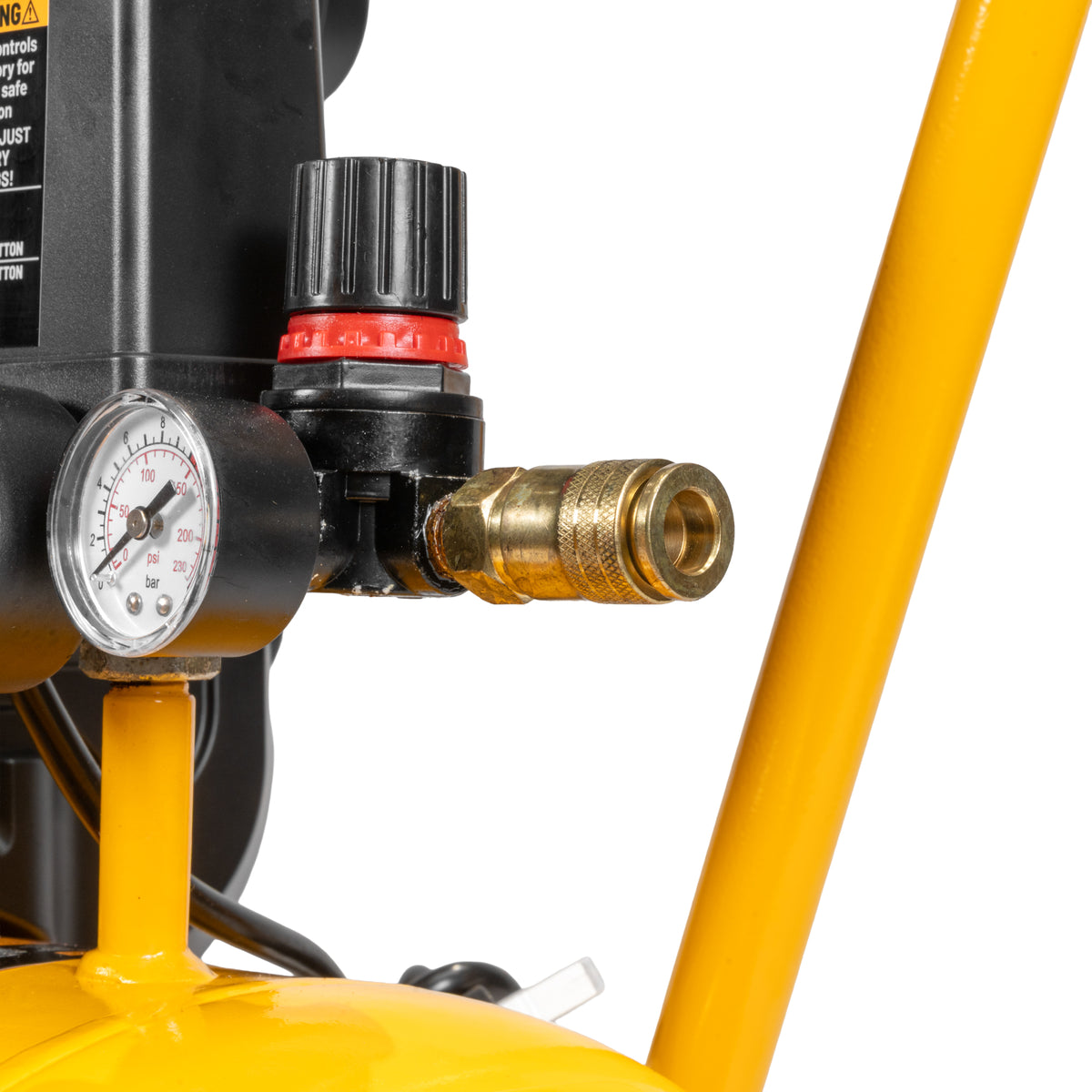

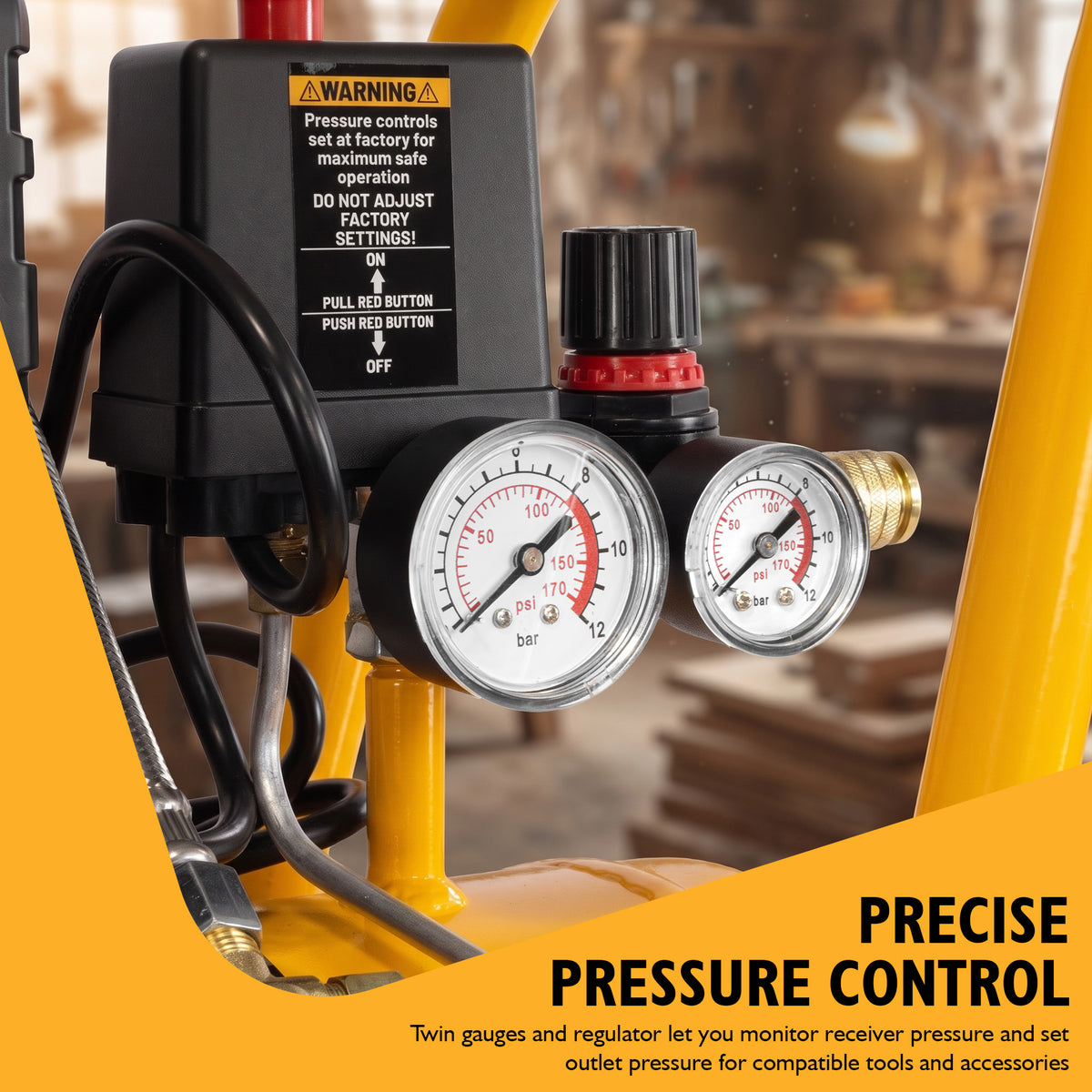

JCB-OFAC-50H twin gauges, regulator and Euro air coupling

CONTROLLED AIR OUTPUT

Twin gauges, a regulator and Euro coupling help monitor and set a suitable outlet pressure.

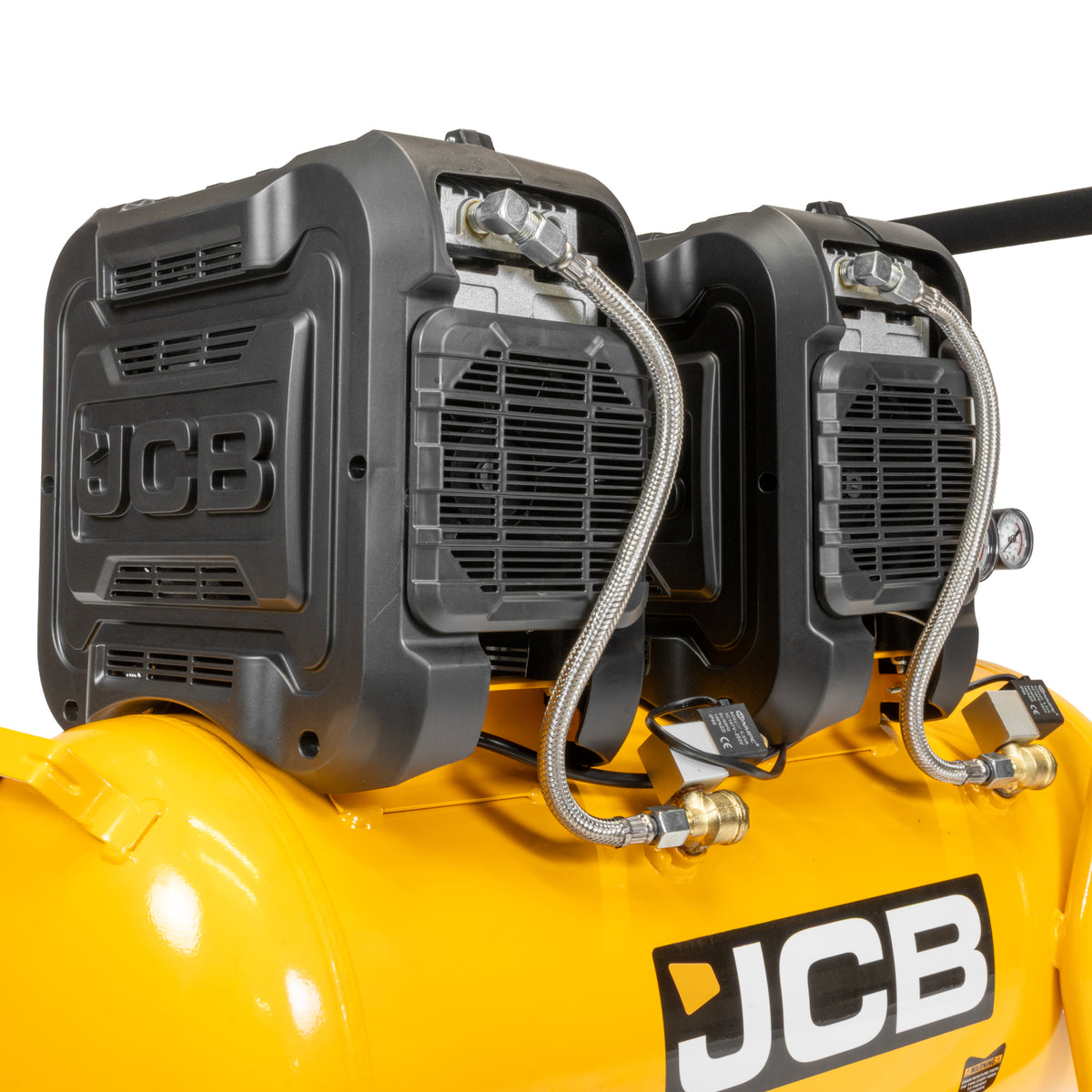

JCB-OFAC-50H oil-free twin-pump detail

OIL-FREE TWIN-PUMP DESIGN

The slow-speed twin-pump system delivers 300L/min displacement without routine pump-oil changes.

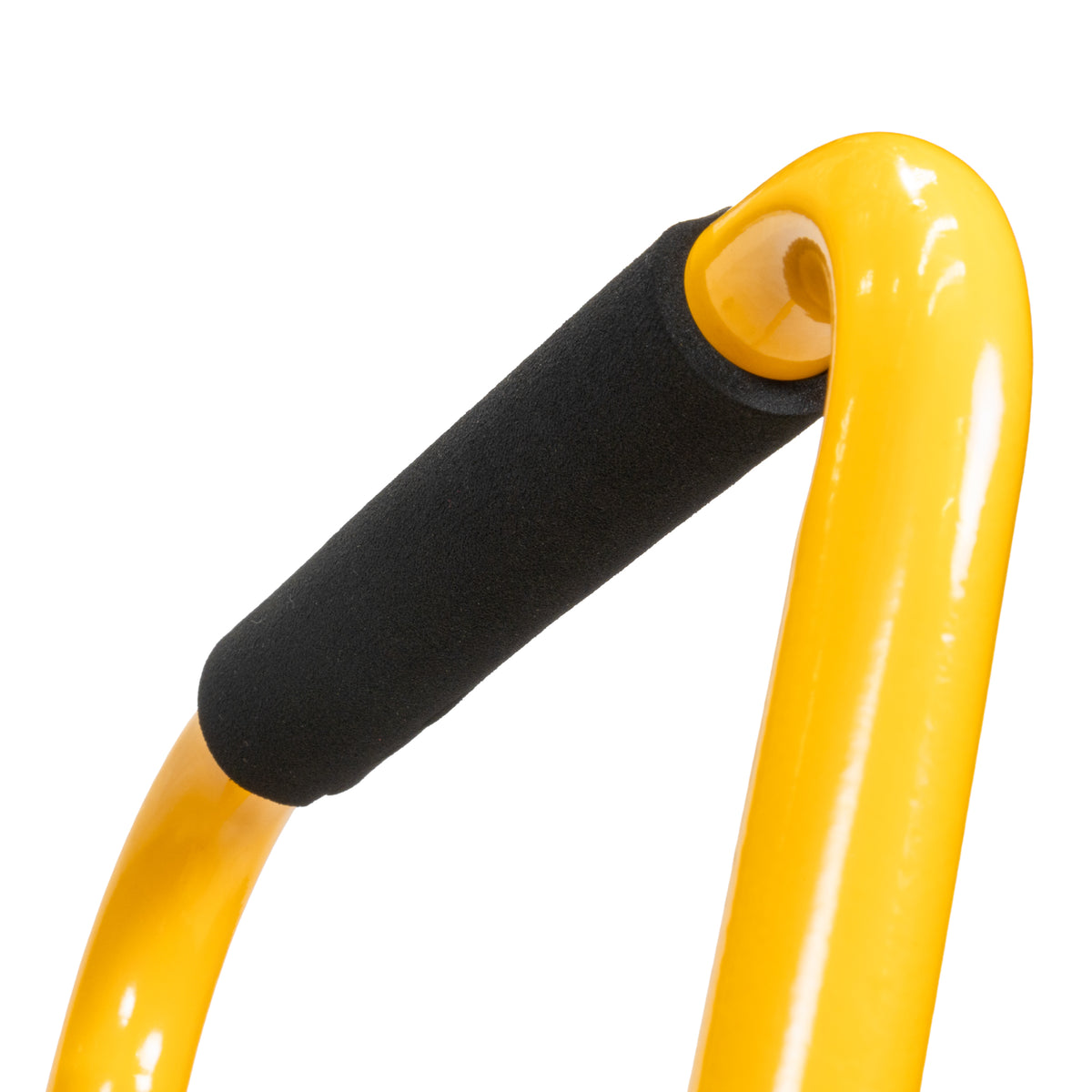

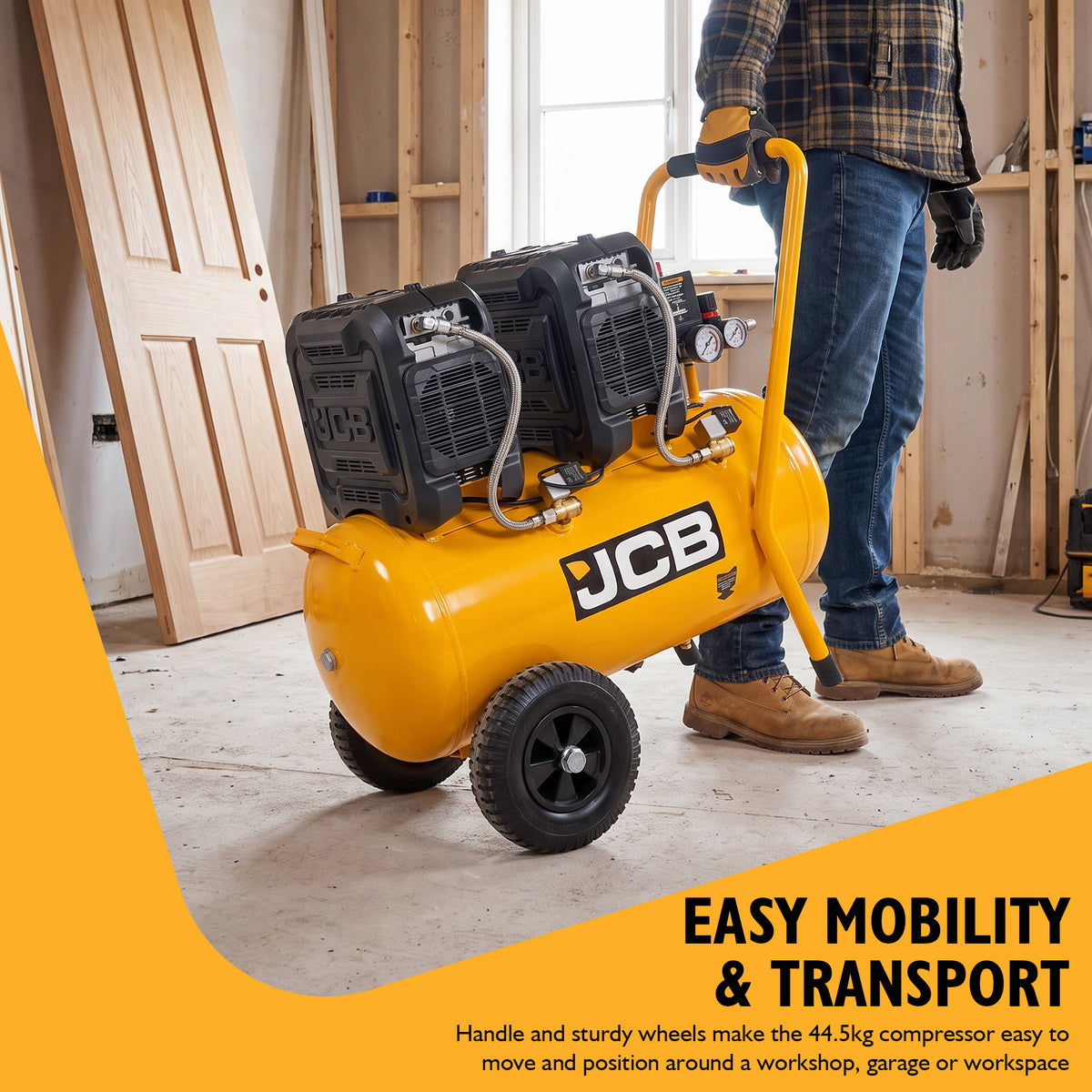

JCB-OFAC-50H handle and wheels for workshop mobility

WHEELED WORKSHOP FORMAT

A fixed handle and wheels support planned movement across firm, level workshop floors.

1450RPMSLOW-SPEED PUMP DESIGN

Silent Pro engineering for capable workshop air delivery.

2 YEARSDOMESTIC WARRANTY

One year commercial cover and 90 days for hire, subject to current terms.

PUT AIR TO WORK

BUILT AROUND REAL TASKS

Choose compatible tools and accessories only after checking working pressure, airflow and duty-cycle requirements.

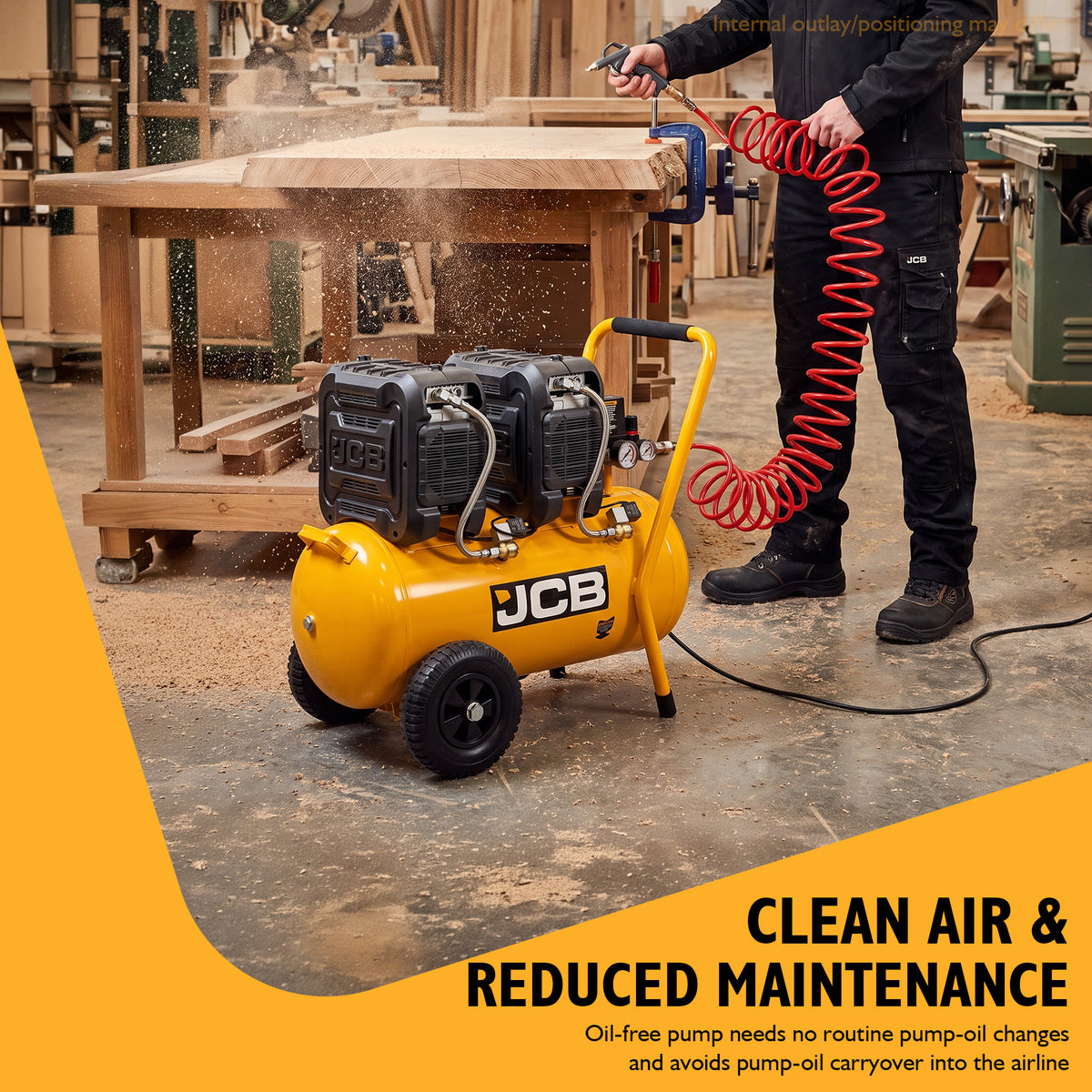

JCB-OFAC-50H air compressor used for blow cleaning

BLOW CLEANING

Clear loose debris with a compatible blow gun and suitable PPE.

JCB-OFAC-50H air compressor used for workshop tyre inflation

WORKSHOP INFLATION

Support compatible tyre-inflation and routine service tasks.

JCB-OFAC-50H air compressor used for compatible light spray work

LIGHT SPRAY WORK

Supply compatible light spray equipment with suitable ventilation and filtration.

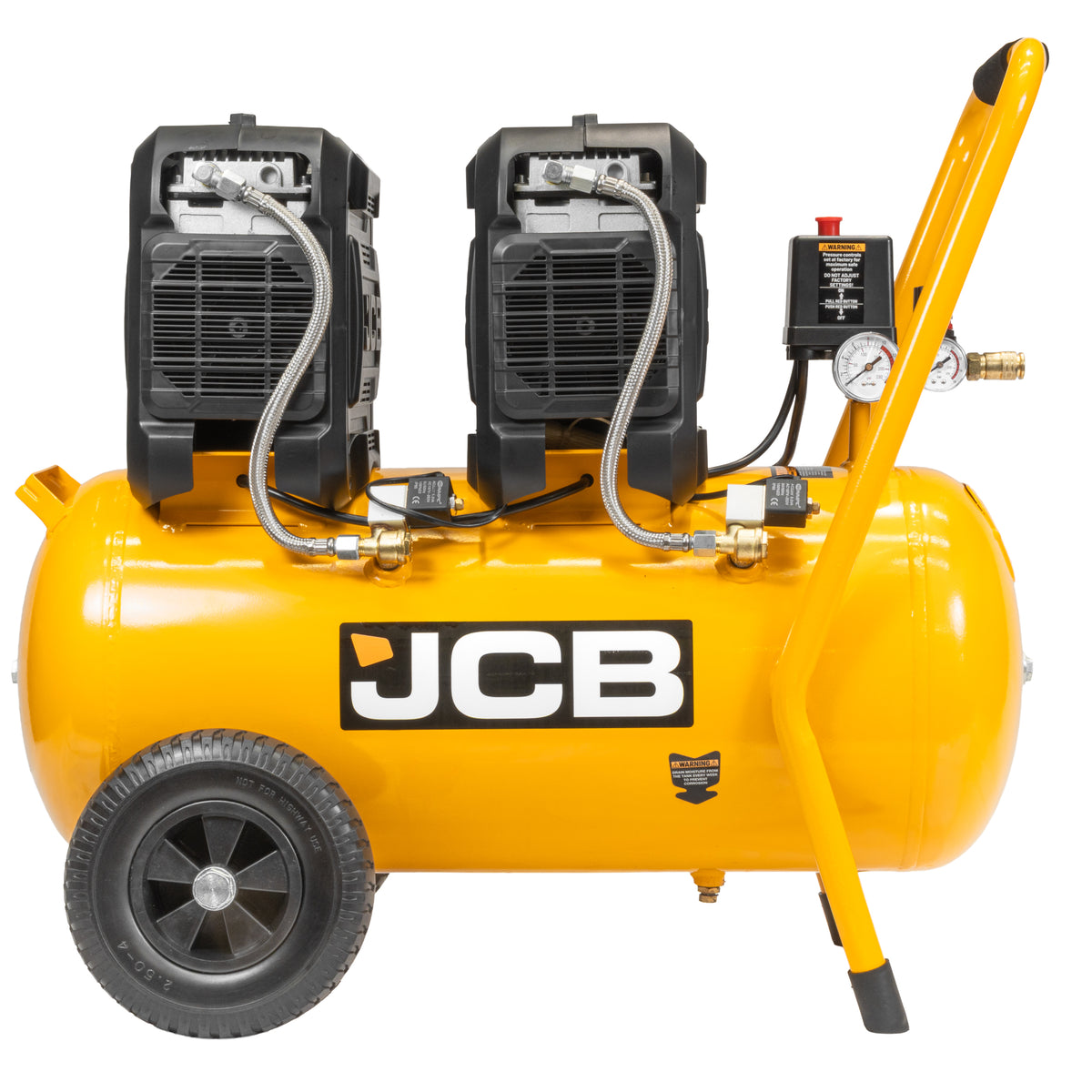

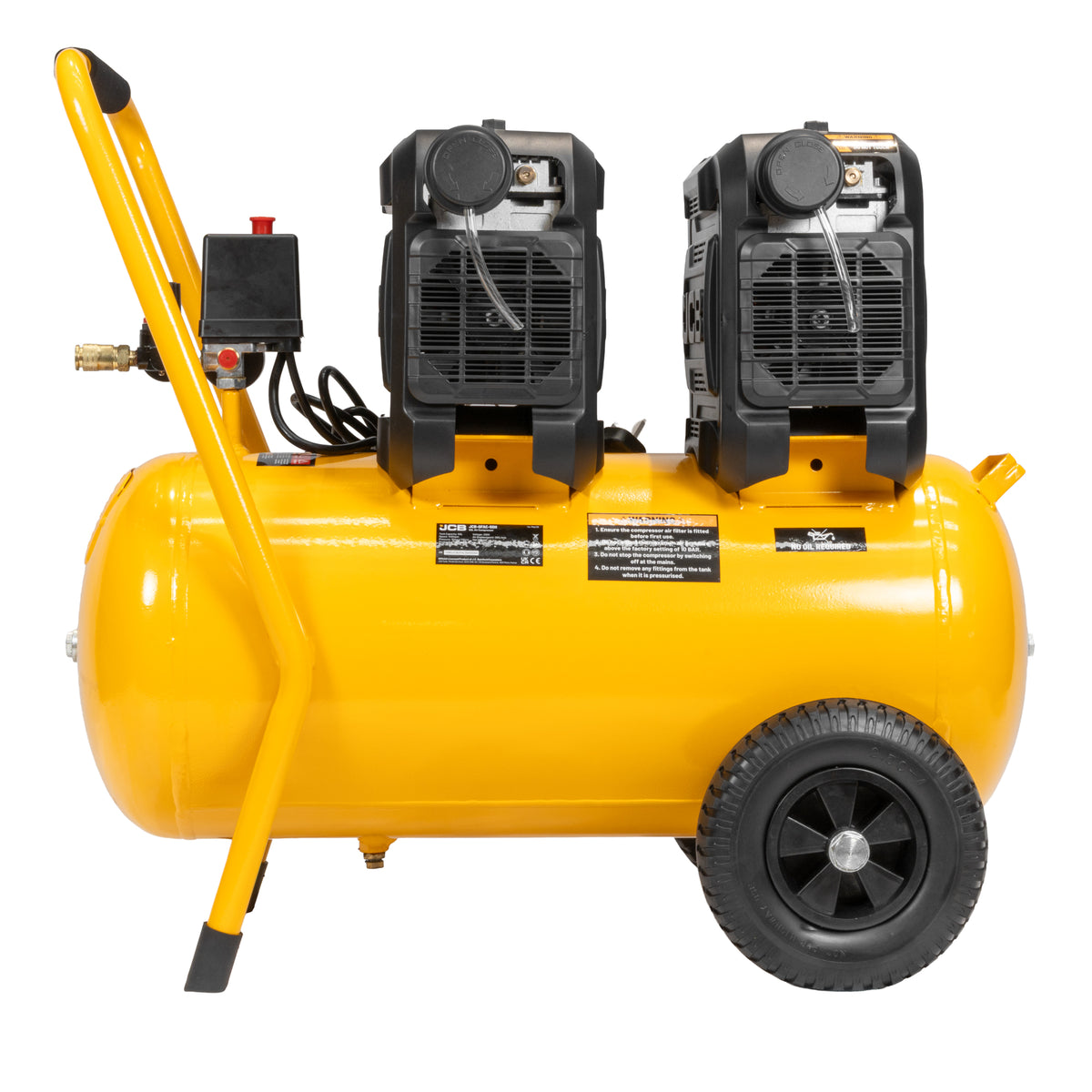

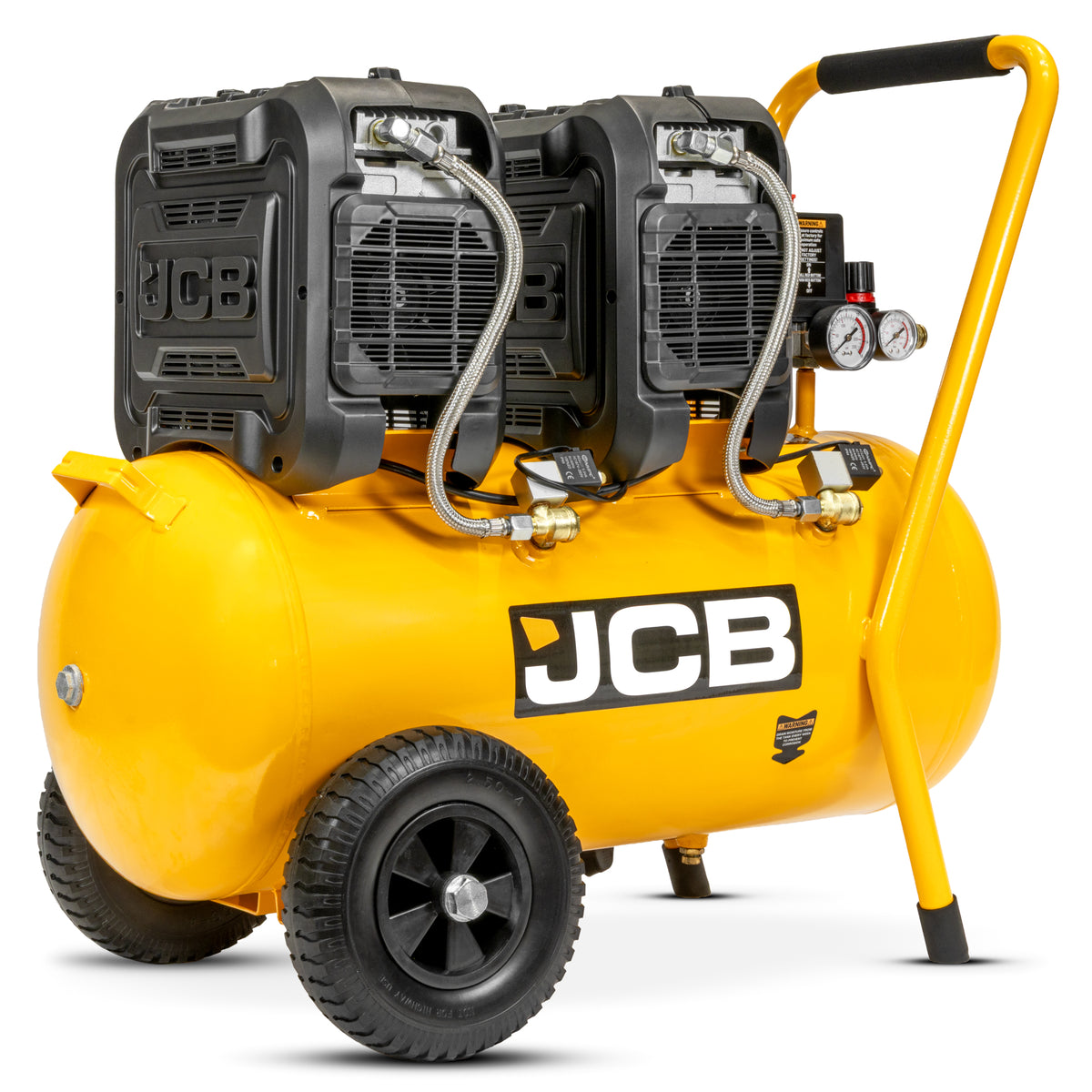

JCB-OFAC-50H Silent Pro 50L oil-free air compressor product view
PRODUCT SET-UP

BUILT FOR THE WORKSHOP

  • 50L horizontal steel receiver
  • Oil-free 2HP direct-drive system
  • Twin gauges and pressure regulator
  • Euro coupling with 1/4in BSP connection
  • Handle and wheels
JCB SILENT PRO RANGE

CHOOSE THE RIGHT AIR COMPRESSOR

Compare receiver size, air displacement and working format to the demands of the task.

Models shown are sold separately. Always match the connected tool to the compressor’s pressure, air-delivery and duty-cycle specifications.

Product Details

Description

Part of the JCB Silent Pro range, the JCB-OFAC-50H is a 50L horizontal oil-free air compressor for workshop inflation, blow cleaning, air brushing, light spray work and intermittent pneumatic-tool use, subject to the connected tool's air requirements. Its 1.5kW, 2HP direct-drive system delivers 300L/min air displacement and reaches 8 bar/116psi. The steel receiver provides increased stored-air capacity, while the oil-free pump removes routine pump-oil changes and avoids pump-oil carryover.

Silent Pro 50L Workshop Air

The JCB Silent Pro design pairs a 1450rpm slow-speed pump with a horizontal 50L steel receiver for intermittent workshop tasks. The larger air reserve can reduce how frequently the motor needs to replenish the tank during short bursts of use, subject to the connected tool's demand and the compressor duty cycle.

Oil-Free 2HP Direct Drive

The 1.5kW, 2HP oil-free direct-drive system is designed for straightforward workshop ownership, with no routine pump-oil changes and less risk of pump-oil carryover into the airline.

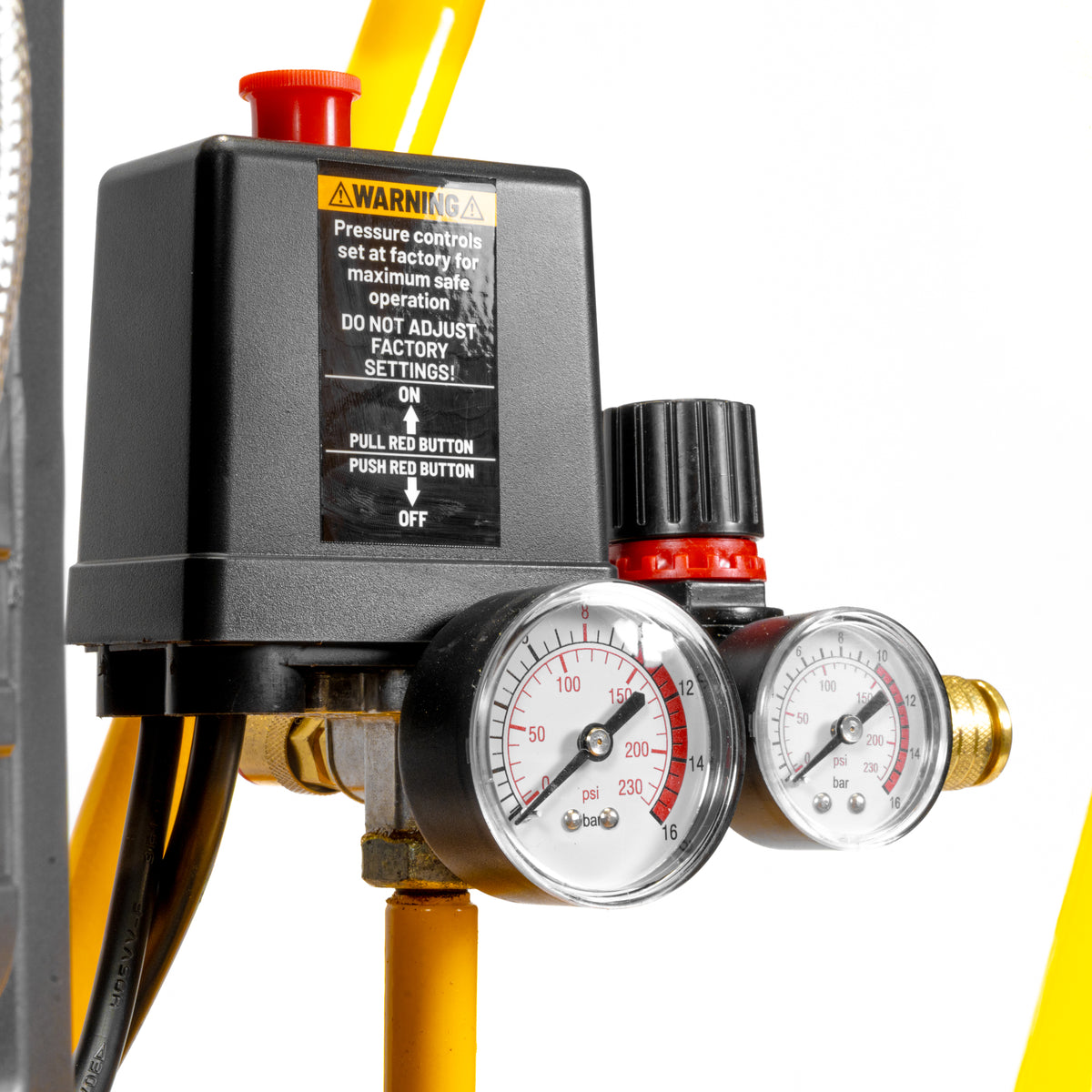

Controlled Air Output

Twin gauges, a pressure regulator and a Euro coupling with 1/4in BSP connection help the operator monitor receiver pressure, set a suitable outlet pressure and connect compatible air tools and accessories.

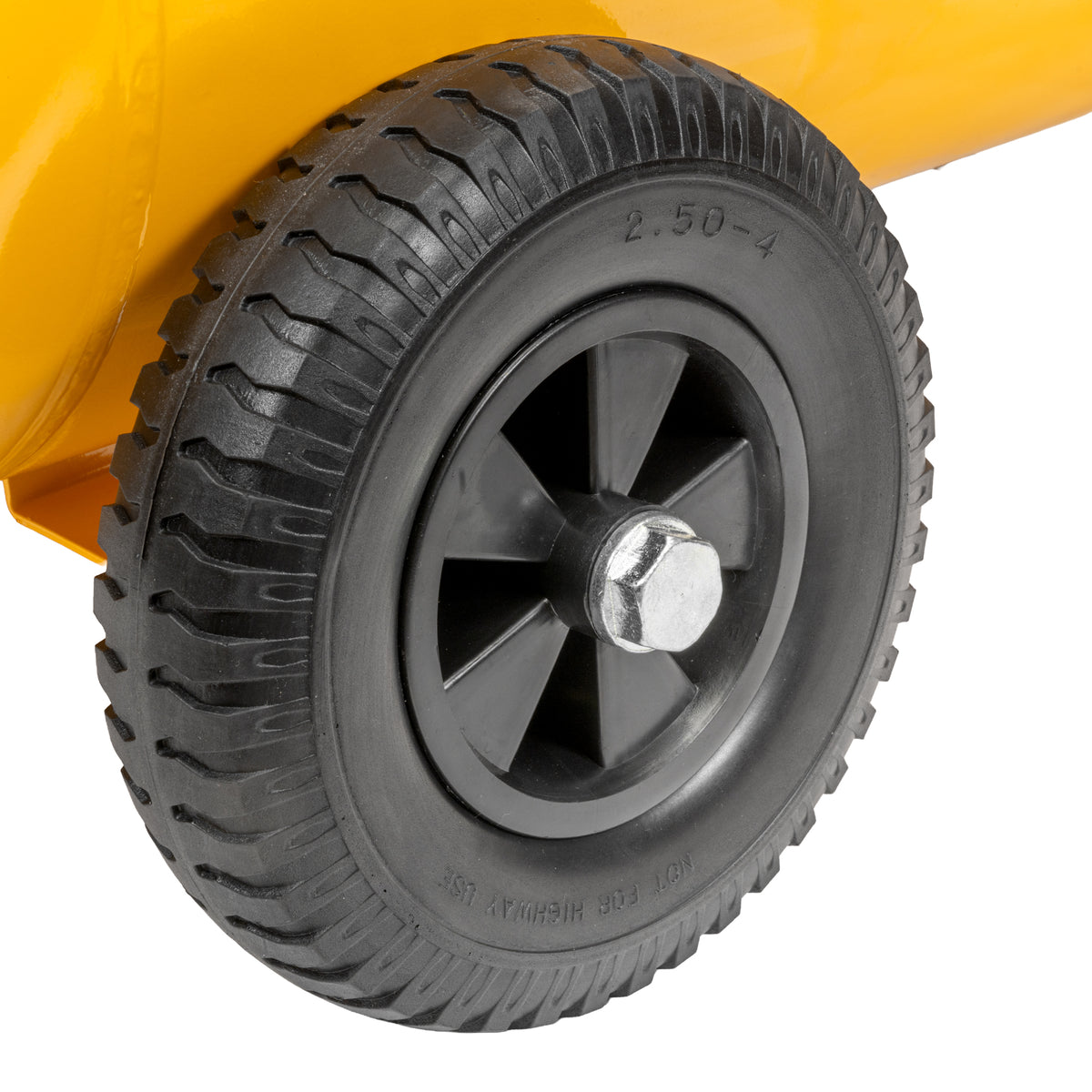

Wheeled Horizontal Layout

A handle and wheels support movement around a workshop, while the horizontal tank layout provides a stable base. The unit weighs 44.5kg net, so movement should be planned on firm, level floors.

Safe Use

  • For indoor use only. Keep the compressor dry and use an RCD-protected supply where required.
  • Wear suitable eye and hearing protection. Never direct compressed air at people or clean clothing while it is being worn.
  • Check every connected tool's working pressure, airflow and duty-cycle requirements before use.
  • Do not use the compressor to supply breathing air.
  • Drain condensate and inspect the receiver as directed in the supplied manual. Do not modify or repair the receiver.

Warranty & Support

UK-based service and parts support is available. 2 years for residential/non-commercial use, 1 year for commercial use and 90 days for hire, subject to current JCB Tools UK warranty terms.

Specifications

Product typeSilent Pro oil-free air compressor
Tank capacity50L
Pump typeOil-free, direct drive
Rated power1500W / 2HP
Motor speed1450rpm
Voltage230V
Maximum pressure8 bar / 116psi
Free air delivery (FAD)66.4L/min / 2.34CFM
Air displacement300L/min / 11CFM
Air outletEuro coupling with 1/4in BSP connection
Sound power level81dB(A)
Duty typeS1 continuous duty
Power cable1.5m
Tank materialSteel
MobilityHandle and wheels
Net weight44.5kg
Gross weight48kg
Assembled dimensions (H x W x L)765 x 440 x 710mm
Packaged dimensions (H x W x L)825 x 390 x 770mm

Support

JCB-OFAC-50H - Spec Sheet PDF Document
